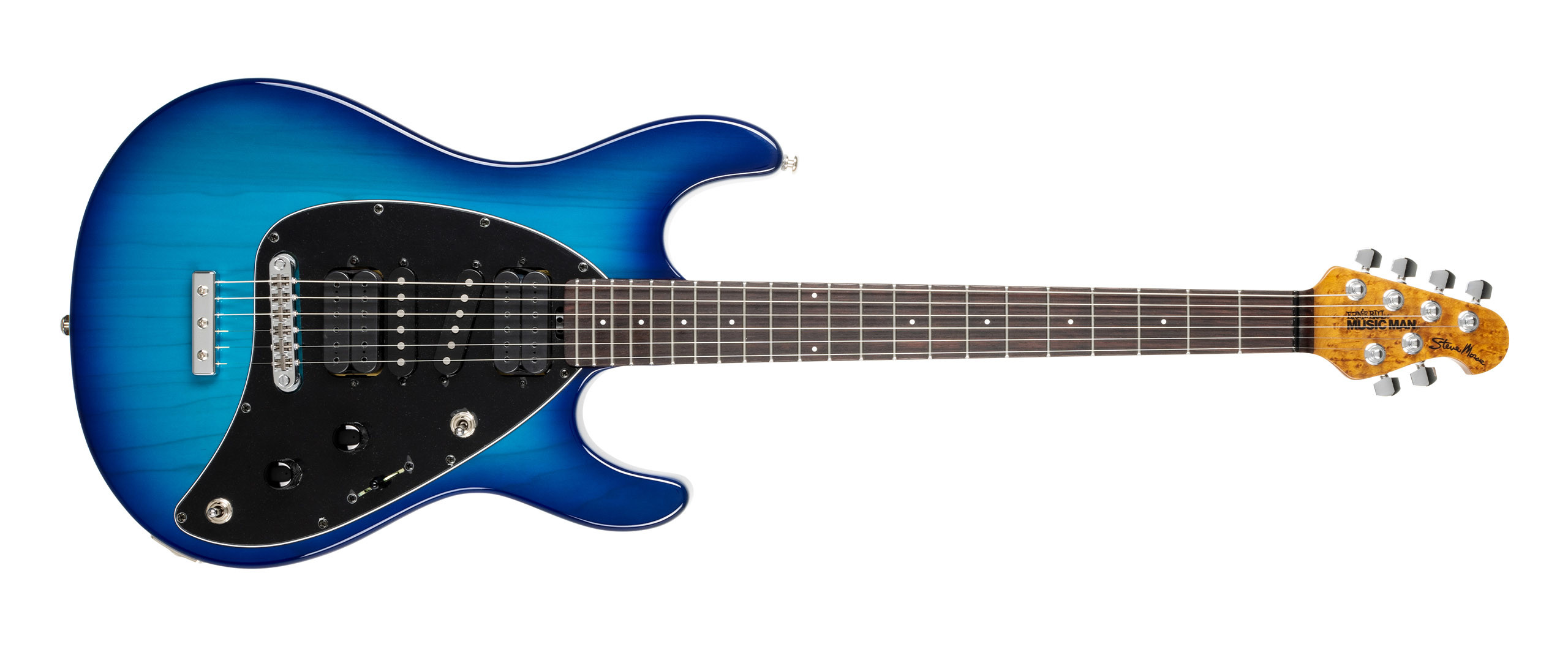

Steve Morse is widely known as one of the greatest and most versatile guitarists of our time. The Steve Morse signature, made to Steve's exact specifications, has been his instrument of choice both in the studio and on stage for more than 35 years. Featuring a classic double cutaway design, four custom DiMarzio pickups, and an intuitive switching layout, this signature guitar affords effortless playability, comfortable yet solid construction, and a full range of tonal possibilities.

Steve Morse Logo

OPTIONS

Morse Blue Burst

Your Custom Options:

Model:
Color:
Neck:
Pickguard:
Hardware:

Build Code
000-00-00-00

STREET PRICE

$0.00

Steve Morse Highlights

Steve Morse Slide
Steve Morse Slide
Steve Morse Slide
Steve Morse Slide
Steve Morse Slide
Steve Morse Slide
Steve Morse Slide
Steve Morse Slide
Steve Morse Highlight

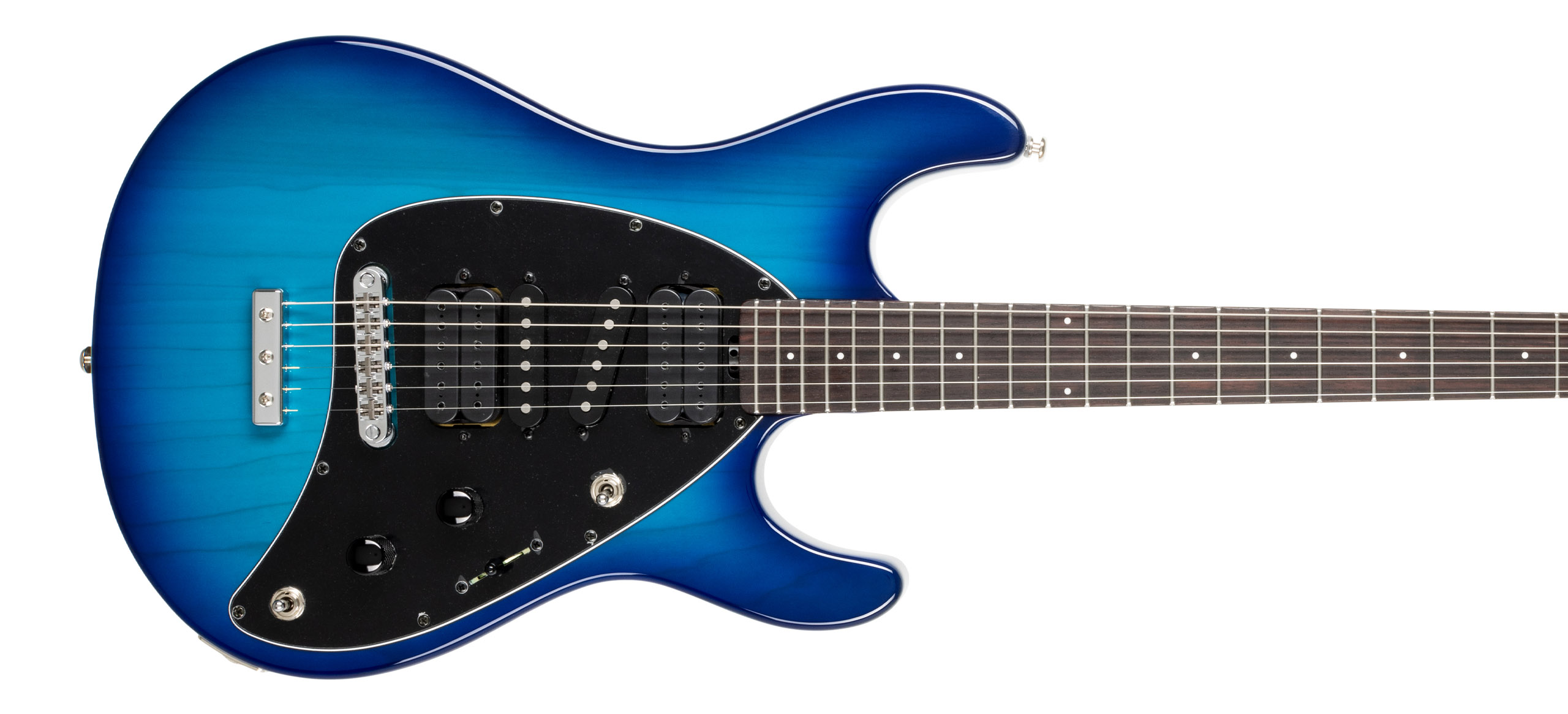

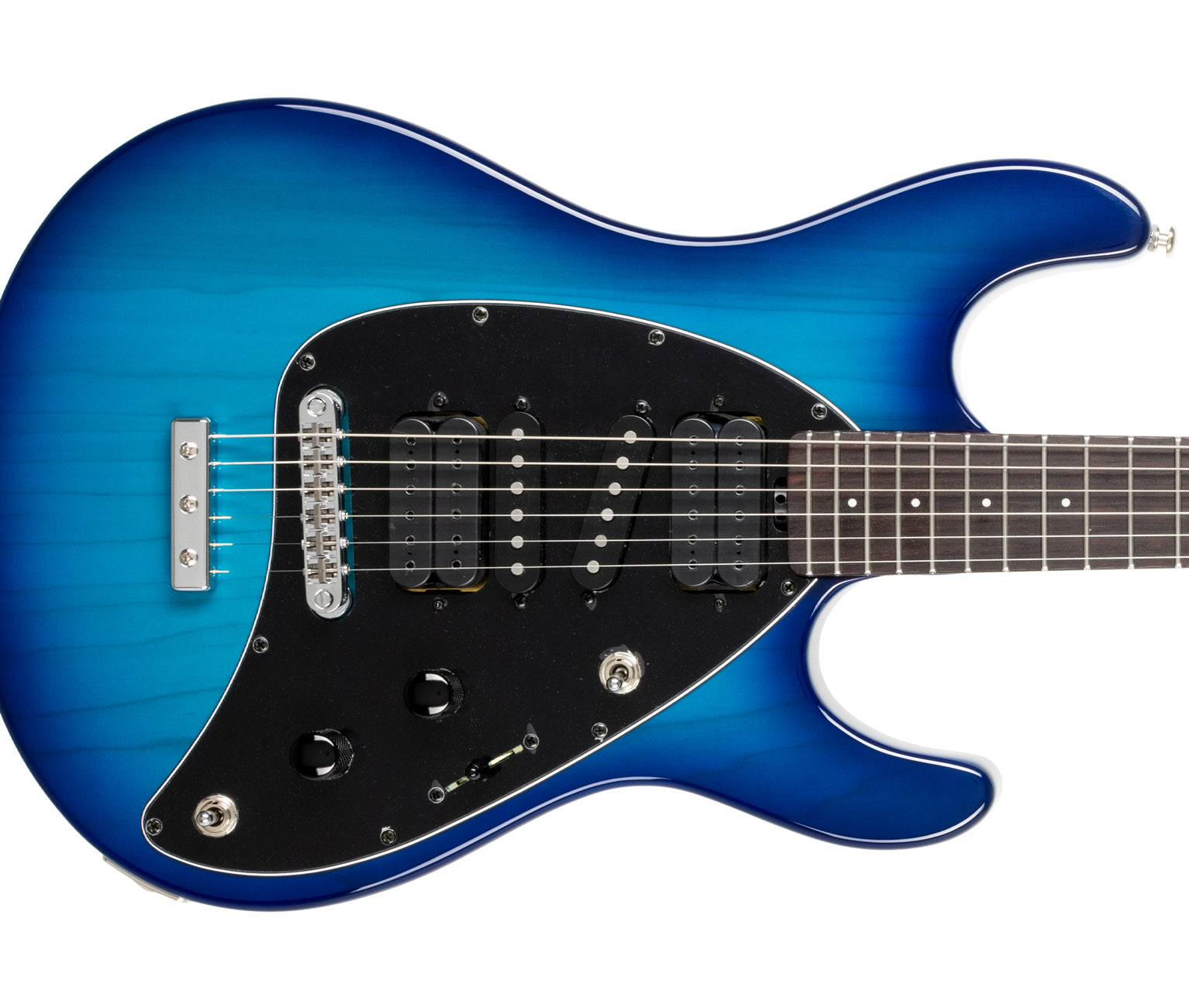

POPLAR BODY - EXCLUSIVE MORSE BLUE BURST FINISH
Steve Morse Highlight

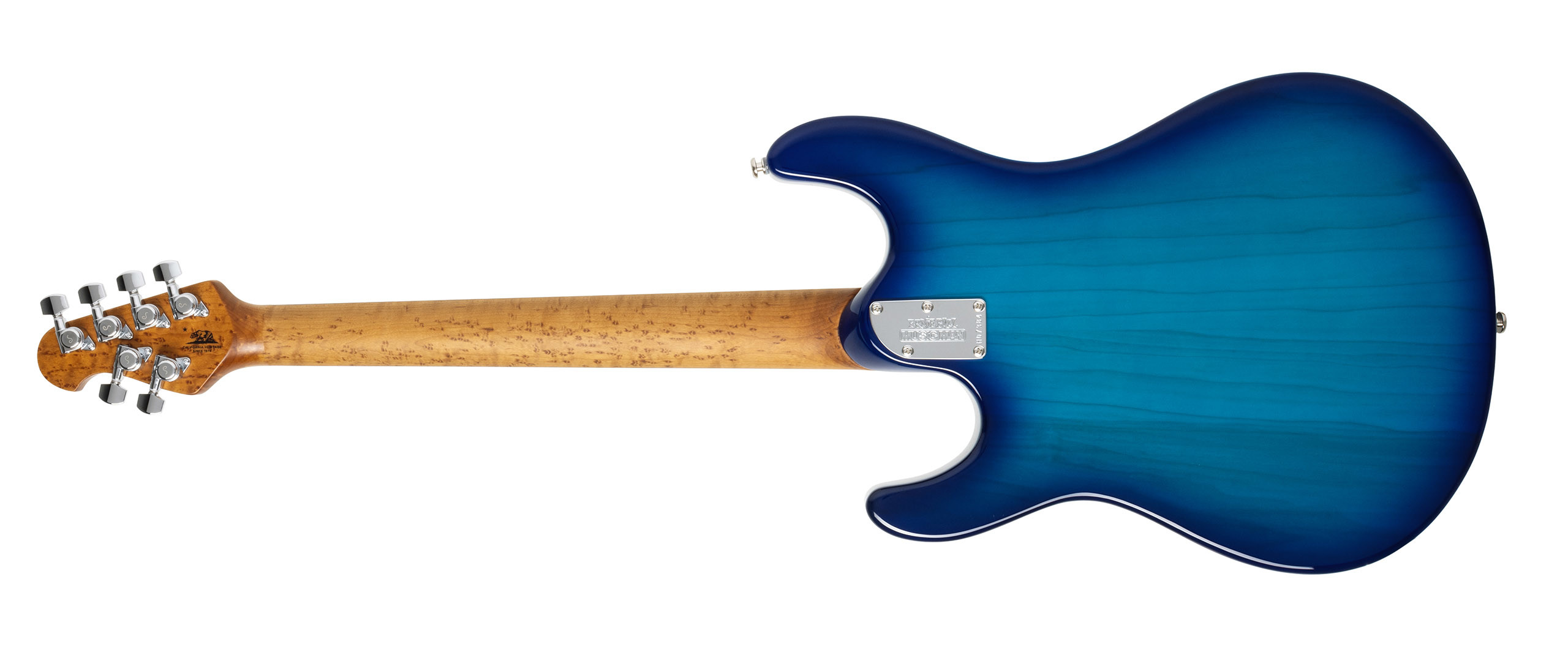

ROASTED FIGURED MAPLE NECK WITH ROSEWOOD FINGERBOARD
Steve Morse Highlight
VERSATILE 4 PICKUP ARRANGEMENT

CUSTOM ELECTRONICS

The Steve Morse signature guitar is equipped with two DiMarzio custom humbucking pickups, one DiMarzio custom single coil, and one proprietary single coil pickup. When combined, these pickups, controlled by a 3-way lever and two toggle switches, provide a total of 11 different pickup configurations, allowing for a wide range of tonal possibilities.

TUNE-O-MATIC BRIDGE

In use since the early 1950s, this popular bridge option is standard on the Steve Morse signature guitar. The Tune-o-Matic bridge is excellent for players who prefer a hardtail bridge option with great sustain and allows for easy string replacement.

5-BOLT SCULPTED NECK JOINT

The Steve Morse signature guitar utilizes a sculpted neck joint, providing uninhibited access to all 22 stainless steel frets atop a roasted maple neck and rosewood fingerboard.

Specifications, Schematics & More

Specifications Steve Morse
Model Steve Morse
Size 12-1/2" wide, 1-3/4" thick, 36-7/8" long (31.8 cm wide, 4.5 cm thick, 93.7 cm long)
Body Wood Poplar
Body Finish High gloss polyester
Bridge Tuneomatic bridge with thumbwheel height adjustment & individual saddles with Music Man® chrome plated, solid brass tail block
Pickguard Black
Scale Length 25-1/2" (64.8 cm)
Neck Radius 12" (30.5 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 22 - High profile, wide stainless steel
Neck Width 1-5/8" (41.3 mm) at nut, 2-1/4" (56.9 mm) at last fret
Neck Wood Figured roasted maple neck
Fingerboard Rosewood
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Natural
Tuning Machines Schaller M6-IND locking
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined pickguard
Controls 250kohm volume and tone - .047µF tone capacitor
Switching 2-way toggle, 3-way toggle pickup selector; 3-way lever pickup selector
Pickups HSSH - DiMarzio (neck to bridge); Humbucking - DP-205 Morse Signature; Single coil - DP-108 Vintage; Single coil - Proprietary custom wound; Humbucking - DP-200 Morse Signature
Left Handed No
Strings Ernie Ball 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)

id => 18

iid => 18

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2015-11-06 08:20:37

updated_at => 2015-11-06 08:20:37

Specifications Steve Morse
Model Steve Morse
Order 0
Size 12-1/2" wide, 1-3/4" thick, 36-7/8" long (31.8 cm wide, 4.5 cm thick, 93.7 cm long)
Body Wood Poplar
Body Finish High gloss polyester
Body Colors
Body Bindings
Bridge Tuneomatic bridge with thumbwheel height adjustment & individual saddles with Music Man® chrome plated, solid brass tail block
Pickguard Black
Scale Length 25-1/2" (64.8 cm)
Neck Radius 12" (30.5 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 22 - High profile, wide stainless steel
Neck Width 1-5/8" (41.3 mm) at nut, 2-1/4" (56.9 mm) at last fret
Neck Wood Figured roasted maple neck
Fingerboard Rosewood
Fret Markers
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Natural
Neck Binding
Tuning Machines Schaller M6-IND locking
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined pickguard
Controls 250kohm volume and tone - .047µF tone capacitor
Switching 2-way toggle, 3-way toggle pickup selector; 3-way lever pickup selector
Pickups HSSH - DiMarzio (neck to bridge); Humbucking - DP-205 Morse Signature; Single coil - DP-108 Vintage; Single coil - Proprietary custom wound; Humbucking - DP-200 Morse Signature
Left Handed No
Strings Ernie Ball 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)
