CUSTOM OPTIONS

Teal Quilt (+$200.00)

Teal Flame

Sahara Burst Quilt (+$200.00)

Sahara Burst Flame

Flame Trans Black Burst

Quilt Trans Black Burst (+$200.00)

Your Custom Options:

Model:
Color:
Neck:
Pickguard:
Hardware:

Build Code
000-00-00-00

STREET PRICE

$0.00

JP15 Highlights

JP15 Slide
JP15 Slide
JP15 Slide
JP15 Slide
JP15 Slide
JP15 Slide
JP15 Slide
JP15 Slide
JP15 Slide
JP15 Slide
JP15 Highlight

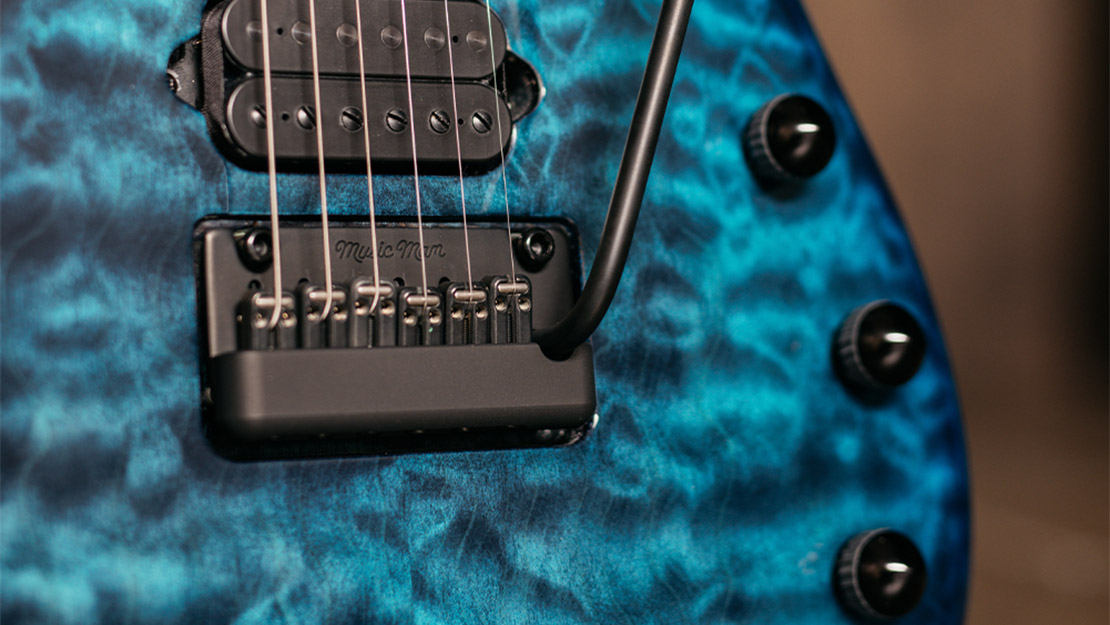

Floating JP Tremolo w/piezo saddles
JP15 Highlight
adjustable trim pots
JP15 Highlight
20 dB Gain Boost Volume Knob

JP15 Playthrough from Nick Depirro of Night Verses

Ernie Ball Music Man John Petrucci JP15 - American Musical Supply

Rabea Massaad's Playthrough of the John Petrucci JP15

Watch as Rabea Massaad demos his beautiful Ernie Ball Music Man JP15.

Watch Cooper Carter Demo And Review The JP15

Guitarist Cooper Carter reviews and demos the Ernie Ball Music Man JP15 electric guitar.

Watch Guitar Interactive's JP15 Review

Tom from Guitar Interactive demos and reviews the Ernie Ball Music Man JP15.

Since 1984, Ernie Ball Music Man has been crafting instruments in San Luis Obispo, California.

Specifications, Schematics & More

Specifications
Model JP15 6
Size 12-3/8" wide, 1-3/4" thick, 37" long (31.4 cm wide, 4.5 cm thick, 94.0 cm long)
Weight 7 lbs, 4 oz (3.29 kg) - varies slightly
Body Wood African mahogany with maple top (roasted maple top on Sahara Burst)
Body Finish Matte Polyester - Sahara Burst & Trans Black Burst; High Gloss Polyester - Teal
Body Colors Sahara Burst, Teal, Trans Black Burst
Bridge Custom John Petrucci Music Man® Piezo floating tremolo, made of chrome plated (matte black on trans black burst), hardened steel with stainless steel saddles.
Scale Length 25-1/2" (64.8 cm)
Neck Radius 17" (43.2 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 24 - Medium Jumbo profile, Stainless Steel
Neck Width 1-11/16" (43.0 mm) at nut, 2-1/4" (57.2 mm) at last fret

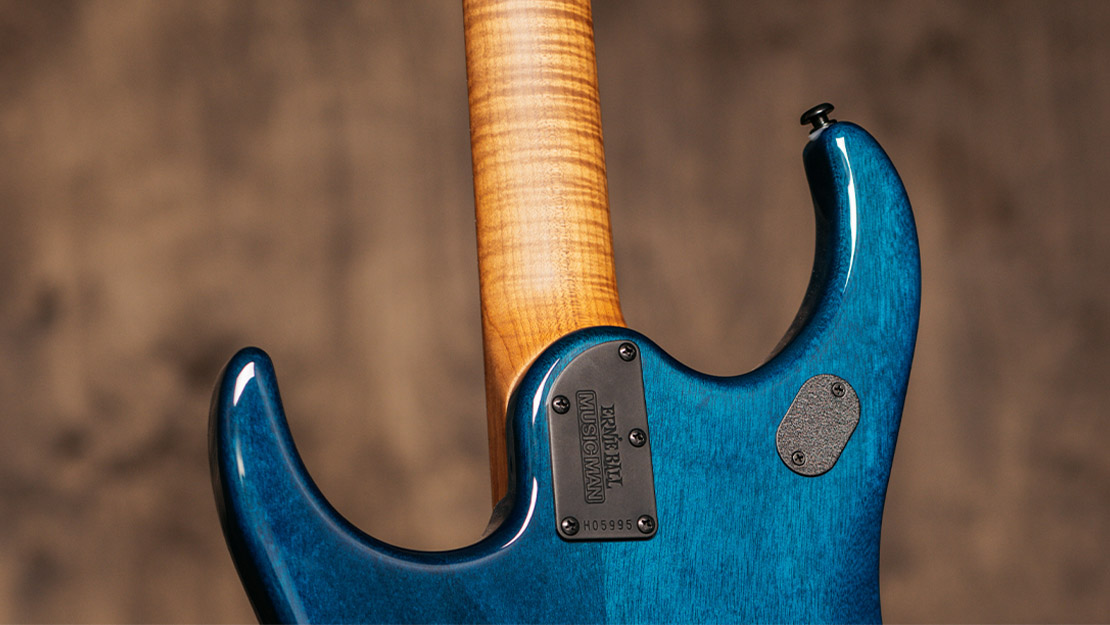

Neck Wood Select roasted maple neck
Fingerboard Select roasted maple neck
Fret Markers Custom JP15 Inlays
Neck Finish Gunstock oil and hand-rubbed special wax blend

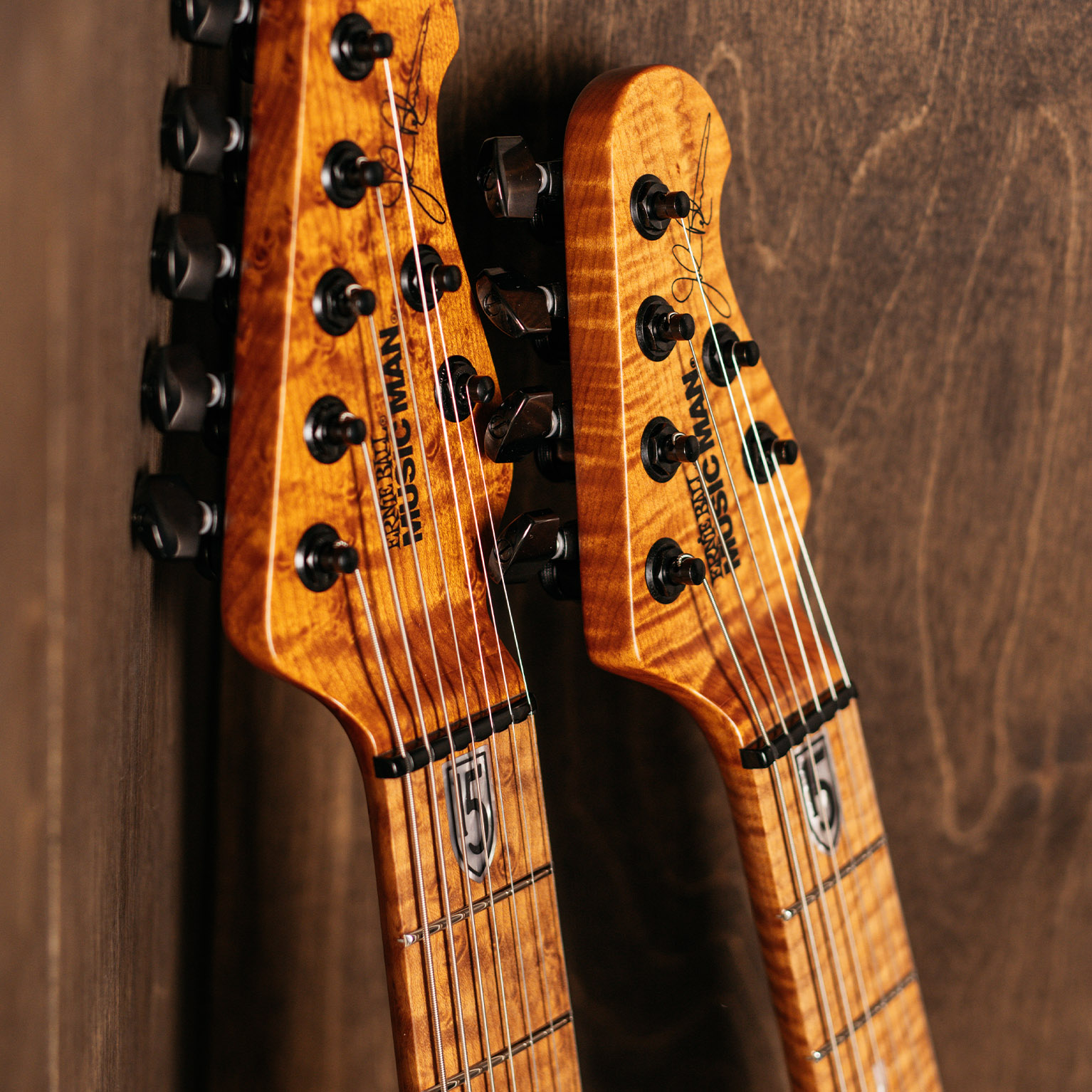

Tuning Machines Schaller M6-IND locking with pearl buttons (black buttons on trans black burst)
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - perfect alignment with no shifting; Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls Custom Music Man® active preamp; push/push volume for gain boost, 500kohm push/push passive tone for custom 2 pickup configurations - .022µF tone capacitor
Switching 3-way toggle pickup selector, with custom center position configuration; 3-way toggle piezo/magnetic selector

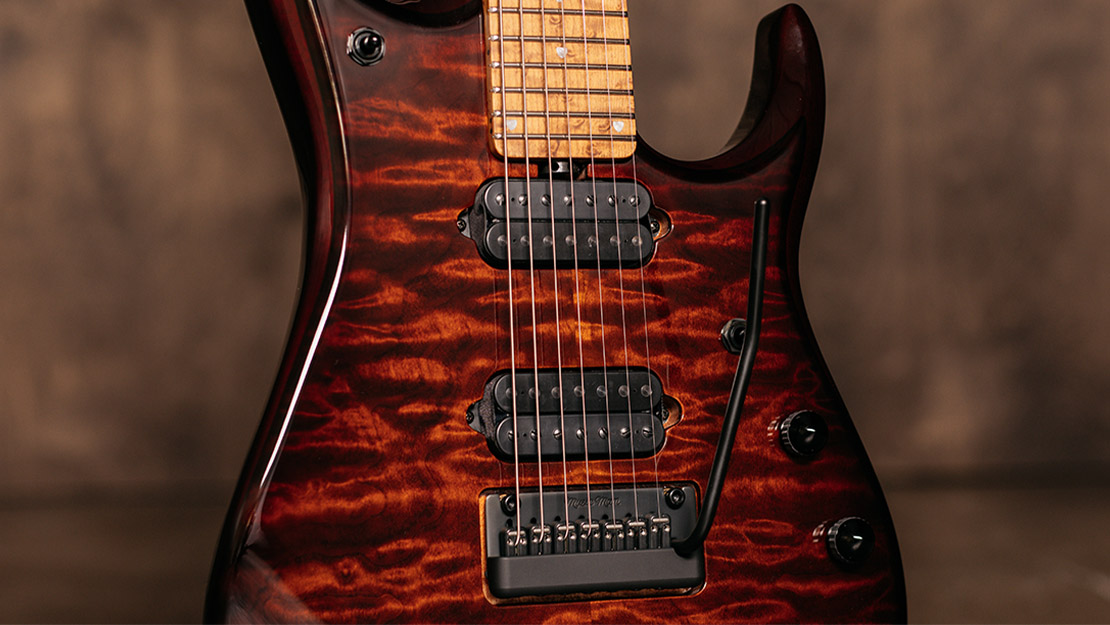

Pickups HH - DiMarzio Illuminators; Piezo bridge pickup
Left Handed No
Strings 10p-13p-17p-26-36-46 (RPS 10 Slinkys #2240)

id => 30

iid => 30

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2015-11-06 08:20:41

updated_at => 2015-11-06 08:20:41

Specifications
Model JP15 6
Order 0
Size 12-3/8" wide, 1-3/4" thick, 37" long (31.4 cm wide, 4.5 cm thick, 94.0 cm long)
Weight 7 lbs, 4 oz (3.29 kg) - varies slightly
Body Wood African mahogany with maple top (roasted maple top on Sahara Burst)
Body Finish Matte Polyester - Sahara Burst & Trans Black Burst; High Gloss Polyester - Teal
Body Colors Sahara Burst, Teal, Trans Black Burst
Body Bindings
Bridge Custom John Petrucci Music Man® Piezo floating tremolo, made of chrome plated (matte black on trans black burst), hardened steel with stainless steel saddles.
Pickguard
Scale Length 25-1/2" (64.8 cm)
Neck Radius 17" (43.2 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 24 - Medium Jumbo profile, Stainless Steel
Neck Width 1-11/16" (43.0 mm) at nut, 2-1/4" (57.2 mm) at last fret
Neck Wood Select roasted maple neck
Fingerboard Select roasted maple neck
Fret Markers Custom JP15 Inlays
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors
Neck Binding
Tuning Machines Schaller M6-IND locking with pearl buttons (black buttons on trans black burst)
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - perfect alignment with no shifting; Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls Custom Music Man® active preamp; push/push volume for gain boost, 500kohm push/push passive tone for custom 2 pickup configurations - .022µF tone capacitor
Switching 3-way toggle pickup selector, with custom center position configuration; 3-way toggle piezo/magnetic selector
Pickups HH - DiMarzio Illuminators; Piezo bridge pickup
Left Handed No
Strings 10p-13p-17p-26-36-46 (RPS 10 Slinkys #2240)
