The JP BFR features an alder body with a mahogany tone block and figured maple top. Honduran Mahogany neck with East Indian Rosewood fingerboard. The JP BFR is powered by Dimarzio Liquifire & Crunchlab pickups, piezo bridge system, and a coil-splitting tone pot. Available in 6 or 7 string with Music Man JP tremolo, 3-way Toggle pickup selector and Music Man hardshell case. *Koa option includes Mahogany body and neck with an ebony fretboard and gold hardware.

John Petrucci BFR Logo

John Petrucci BFR Highlights

John Petrucci BFR Slide
John Petrucci BFR Slide
John Petrucci BFR Slide
John Petrucci BFR Slide
John Petrucci BFR Slide
John Petrucci BFR Slide
John Petrucci BFR Highlight

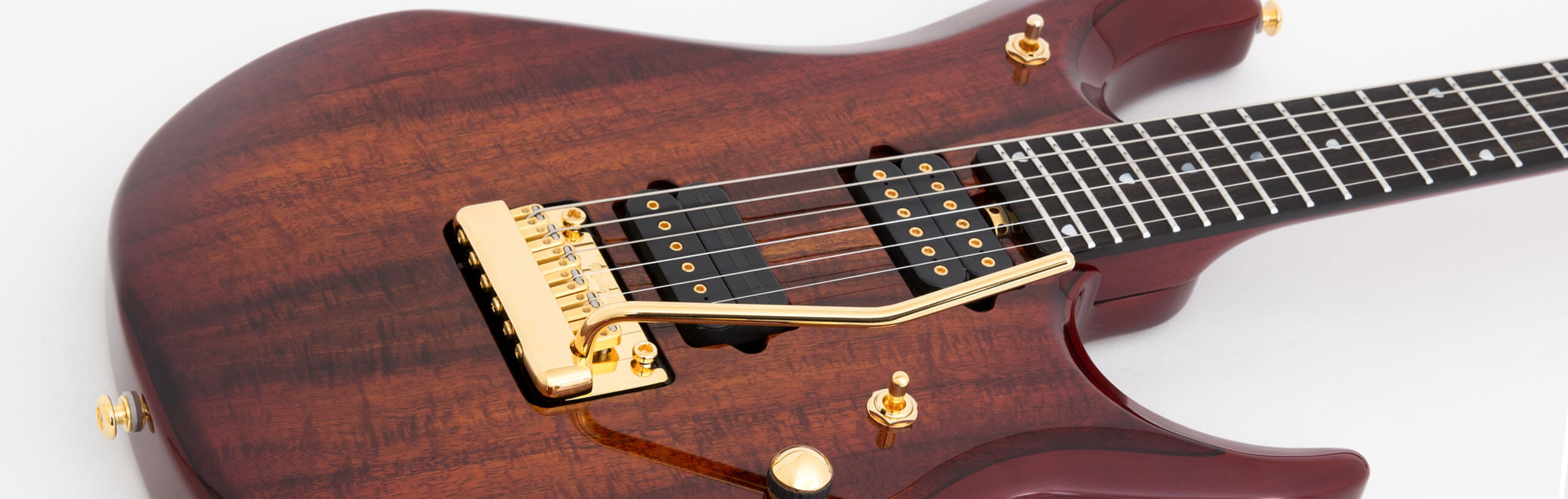

Koa Top
John Petrucci BFR Highlight
Gold hardware
John Petrucci BFR Highlight
Bursted neck

Specifications, Schematics & More

Specifications
Model John Petrucci BFR 6
Size 12-3/8" wide, 1-3/4" thick, 37" long (31.4 cm wide, 4.5 cm thick, 94.0 cm long)
Body Wood Alder with bookmatched maple top and mahogany Tone Block; optional Koa top with completely mahogany body
Body Finish High gloss polyester
Body Colors Flame Top - Ruby Burst; Quilt Top - Trans Black; Quilt Top - Balboa Blue Burst; Koa Top - Island Burst
Bridge Custom John Petrucci Music Man® Piezo floating tremolo of chrome plated, hardened steel with solid steel saddles; Optional Koa top comes with gold hardware
Scale Length 25-1/2" (64.8 cm)
Neck Radius 15" (38.1 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 24 - High profile, wide, Stainless Steel
Neck Width 1-11/16" (43.0 mm) at nut, 2-1/4" (57.2 mm) at last fret
Neck Wood Select mahogany
Fingerboard Rosewood; Optional Koa top comes with ebony fretboard
Fret Markers Custom JP Shields
Neck Finish High gloss polyester
Neck Colors Color matches body with matching painted headstock
Tuning Machines Schaller M6-IND locking with pearl buttons
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls 500kohm volume, 500kohm push/pull tone for custom 2 pickup configurations - .022µF tone capacitor
Switching 3-way toggle pickup selector, with custom center position configuration; 3-way toggle piezo/magnetic selector
Pickups HH - 1 DiMarzio LiquiFire - neck; 1 DiMarzio Crunch Lab - bridge
Left Handed No
Strings 10p-13p-17p-26-36-46 (RPS 10 Slinkys #2240)

id => 9

iid => 9

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2015-11-06 08:20:34

updated_at => 2015-11-06 08:20:34

Specifications
Model John Petrucci BFR 6
Order 0
Size 12-3/8" wide, 1-3/4" thick, 37" long (31.4 cm wide, 4.5 cm thick, 94.0 cm long)
Body Wood Alder with bookmatched maple top and mahogany Tone Block; optional Koa top with completely mahogany body
Body Finish High gloss polyester
Body Colors Flame Top - Ruby Burst; Quilt Top - Trans Black; Quilt Top - Balboa Blue Burst; Koa Top - Island Burst
Body Bindings
Bridge Custom John Petrucci Music Man® Piezo floating tremolo of chrome plated, hardened steel with solid steel saddles; Optional Koa top comes with gold hardware
Pickguard
Scale Length 25-1/2" (64.8 cm)
Neck Radius 15" (38.1 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 24 - High profile, wide, Stainless Steel
Neck Width 1-11/16" (43.0 mm) at nut, 2-1/4" (57.2 mm) at last fret
Neck Wood Select mahogany
Fingerboard Rosewood; Optional Koa top comes with ebony fretboard
Fret Markers Custom JP Shields
Neck Finish High gloss polyester
Neck Colors Color matches body with matching painted headstock
Neck Binding
Tuning Machines Schaller M6-IND locking with pearl buttons
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls 500kohm volume, 500kohm push/pull tone for custom 2 pickup configurations - .022µF tone capacitor
Switching 3-way toggle pickup selector, with custom center position configuration; 3-way toggle piezo/magnetic selector
Pickups HH - 1 DiMarzio LiquiFire - neck; 1 DiMarzio Crunch Lab - bridge
Left Handed No
Strings 10p-13p-17p-26-36-46 (RPS 10 Slinkys #2240)
