JP6 is the original Music Man John Petrucci signature model. The basswood body features a high gloss durable finish with stylish lines and an ergonomic scooped arm contour. The smooth action floating tremolo allows for raising and lowering of the pitch with impeccable tuning stability and piezo pickups. Stainless steel frets, JP shield inlays and a rosewood fretboard come standard on the ultra-thin, fast and figured maple neck.

John Petrucci Logo

John Petrucci Highlights

John Petrucci Slide
John Petrucci Slide
John Petrucci Slide
John Petrucci Slide
John Petrucci Slide
John Petrucci Slide
John Petrucci Slide
John Petrucci Slide
John Petrucci Slide
John Petrucci Slide
John Petrucci Slide
John Petrucci Slide
John Petrucci Highlight
Floating JP trem with optional piezo saddles
John Petrucci Highlight

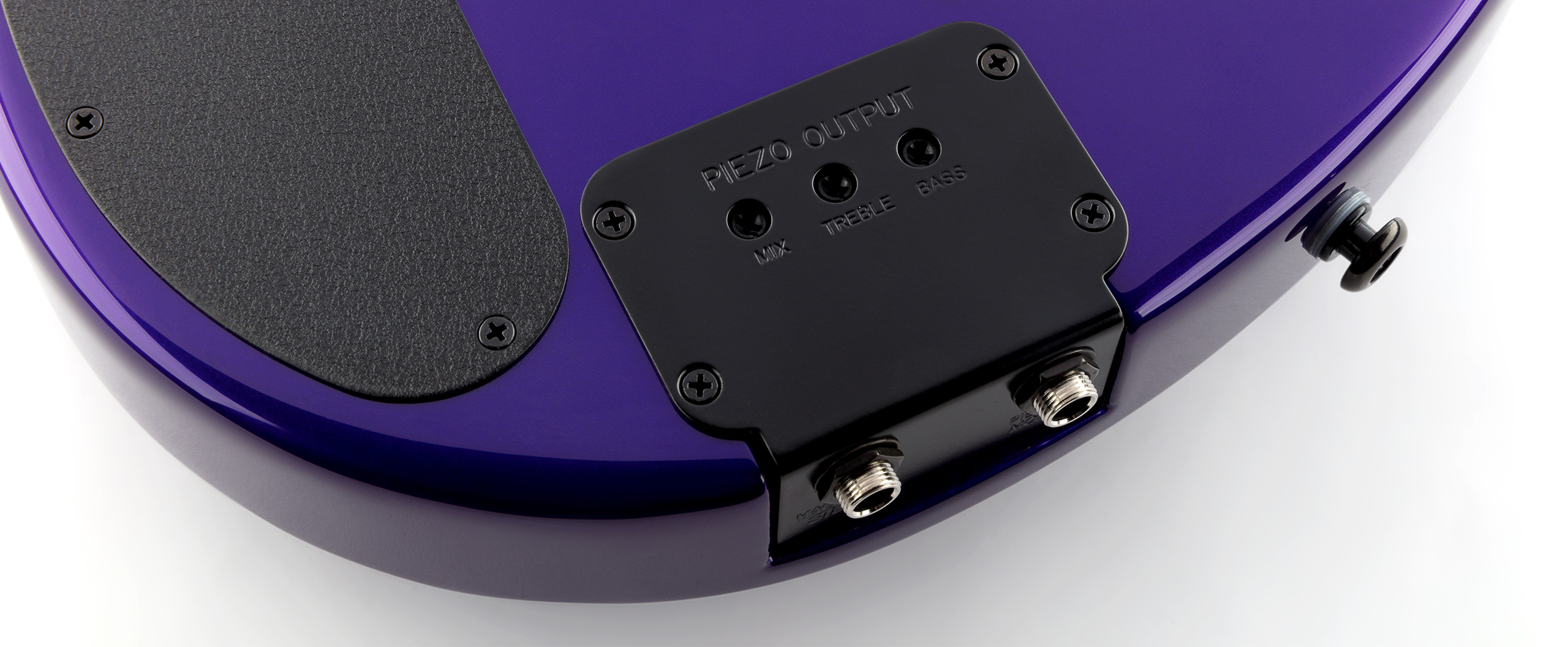

Mono or Stereo Output
John Petrucci Highlight
24 stainless steel frets

Specifications, Schematics & More

Specifications
Model John Petrucci 6
Size 12-1/2" wide, 1-3/4" thick, 37" long (31.8 cm wide, 4.5 cm thick, 94.0 cm long)
Body Wood Basswood
Body Finish High gloss polyester
Bridge Custom John Petrucci Music Man® Piezo floating tremolo of matte black, hardened steel with Fishman Powerbridge piezo saddles
Scale Length 25-1/2" (64.8 cm)
Neck Radius 15" (38.1 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 24 - High profile, wide, Stainless Steel
Neck Width 1-11/16" (43.0 mm) at nut, 2-1/4" (57.2 mm) at last fret
Neck Wood Select maple neck
Fingerboard Standard - Rosewood; Stealth Black - Ebony

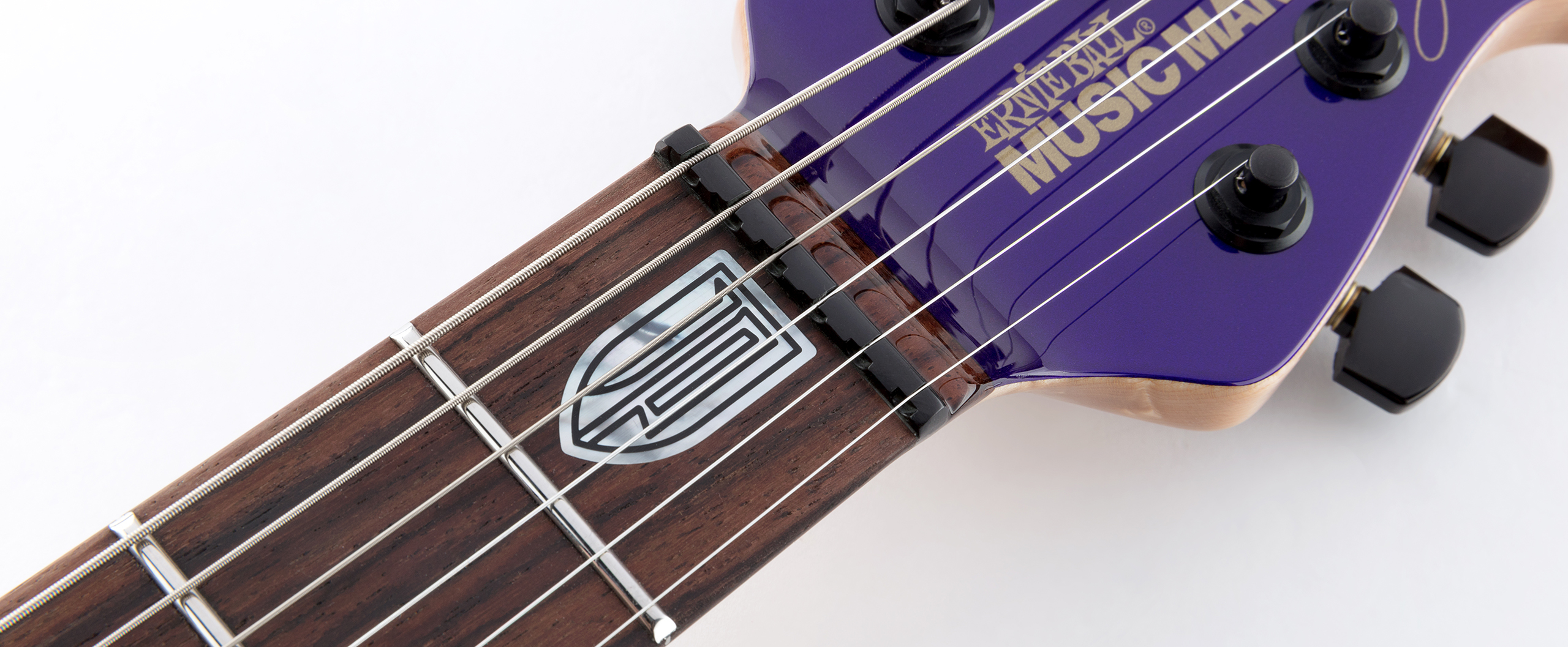

Fret Markers Standard - JP Shields
Neck Finish Gunstock oil and hand-rubbed special wax blend (Ultra-light satin polyurethane finish for Stealth Black)
Neck Colors Standard - Matching painted headstock

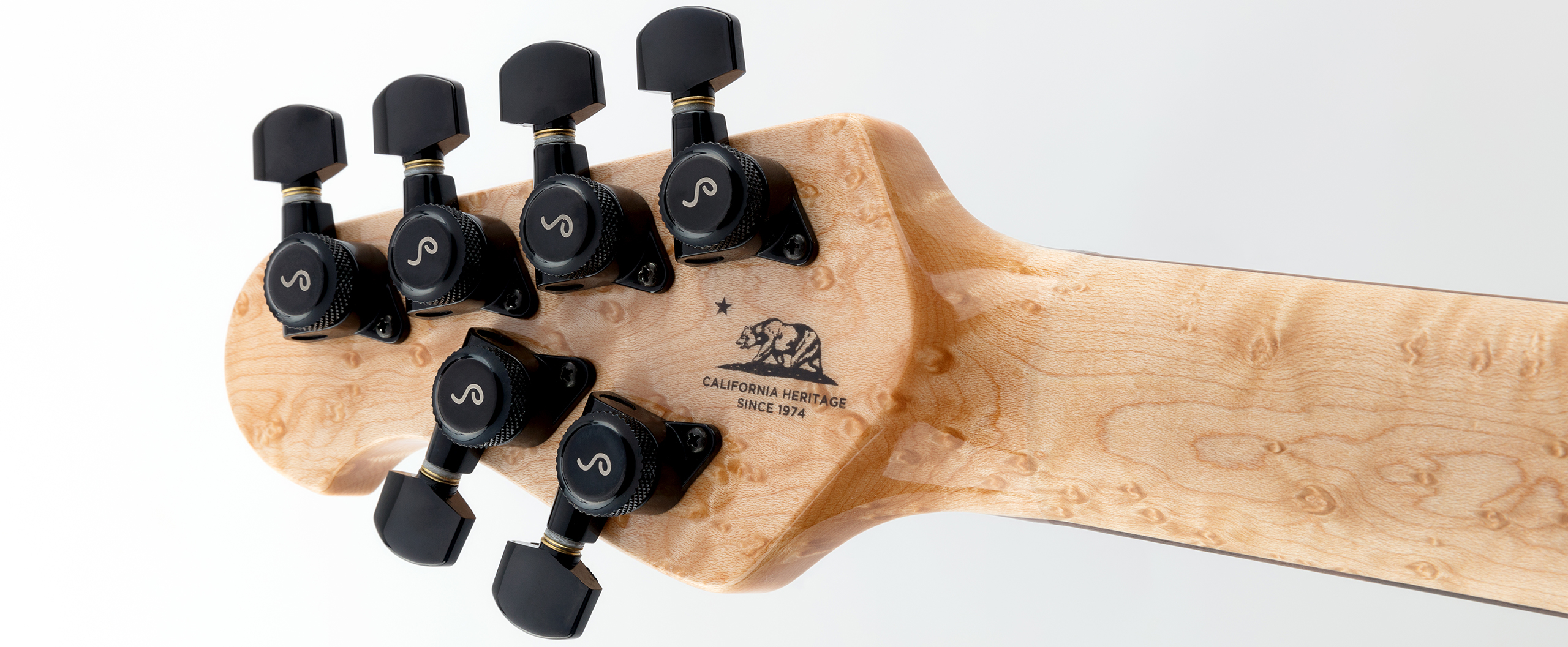

Tuning Machines Schaller M6-IND locking
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls 500kohm volume and tone - .022µF tone capacitor
Switching 3-way toggle pickup selector; 3-way toggle piezo/magnetic selector (when applicable)

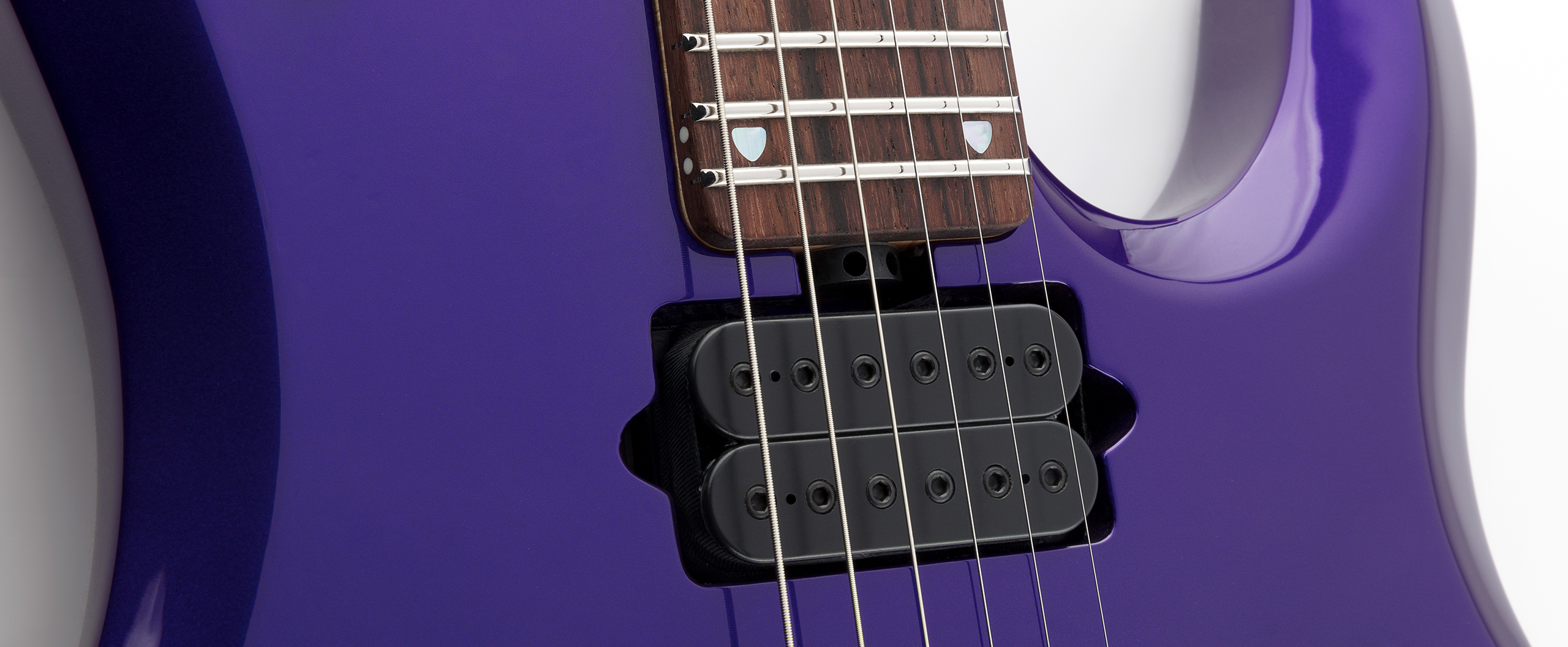

Pickups HH - 1 DiMarzio LiquiFire - neck; 1 DiMarzio Crunch Lab - bridge; Fishman Powerbridge piezo saddles
Left Handed Yes-Piezo only
Strings 10p-13p-17p-26-36-46 (RPS 10 Slinkys #2240)

id => 7

iid => 7

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2015-11-06 08:20:34

updated_at => 2015-11-06 08:20:34

Specifications
Model John Petrucci 6
Order 0
Size 12-1/2" wide, 1-3/4" thick, 37" long (31.8 cm wide, 4.5 cm thick, 94.0 cm long)
Body Wood Basswood
Body Finish High gloss polyester
Body Colors
Body Bindings
Bridge Custom John Petrucci Music Man® Piezo floating tremolo of matte black, hardened steel with Fishman Powerbridge piezo saddles
Pickguard
Scale Length 25-1/2" (64.8 cm)
Neck Radius 15" (38.1 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 24 - High profile, wide, Stainless Steel
Neck Width 1-11/16" (43.0 mm) at nut, 2-1/4" (57.2 mm) at last fret
Neck Wood Select maple neck
Fingerboard Standard - Rosewood; Stealth Black - Ebony
Fret Markers Standard - JP Shields
Neck Finish Gunstock oil and hand-rubbed special wax blend (Ultra-light satin polyurethane finish for Stealth Black)
Neck Colors Standard - Matching painted headstock
Neck Binding
Tuning Machines Schaller M6-IND locking
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls 500kohm volume and tone - .022µF tone capacitor
Switching 3-way toggle pickup selector; 3-way toggle piezo/magnetic selector (when applicable)
Pickups HH - 1 DiMarzio LiquiFire - neck; 1 DiMarzio Crunch Lab - bridge; Fishman Powerbridge piezo saddles
Left Handed Yes-Piezo only
Strings 10p-13p-17p-26-36-46 (RPS 10 Slinkys #2240)
