The first bass designed by Ernie Ball Music Man, the Stingray 5 was unveiled in 1987 and has been an industry standard for extended range basses ever since. With its powerful punchy sound, the added flexibility of additional pickups and a comfortably contoured body the StingRay5 satisfies even the most demanding of players.

StingRay5 Logo

OPTIONS

White / White

Firemist Gold

Powder Blue

Vintage Sunburst

Natural Gloss

Black

Stealth Black

Your Custom Options:

Model:
Color:
Neck:
Pickguard:
Hardware:

Build Code
000-00-00-00

STREET PRICE

$0.00

StingRay5 Highlights

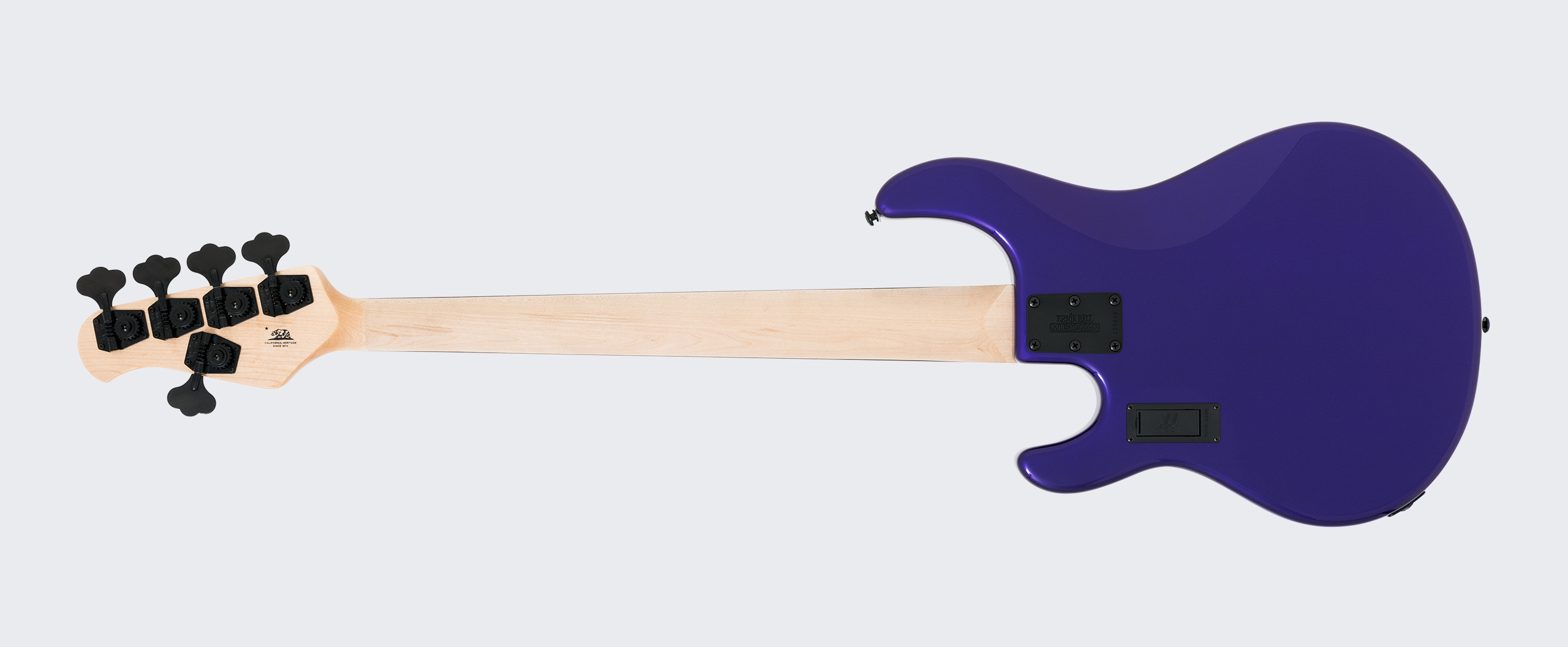

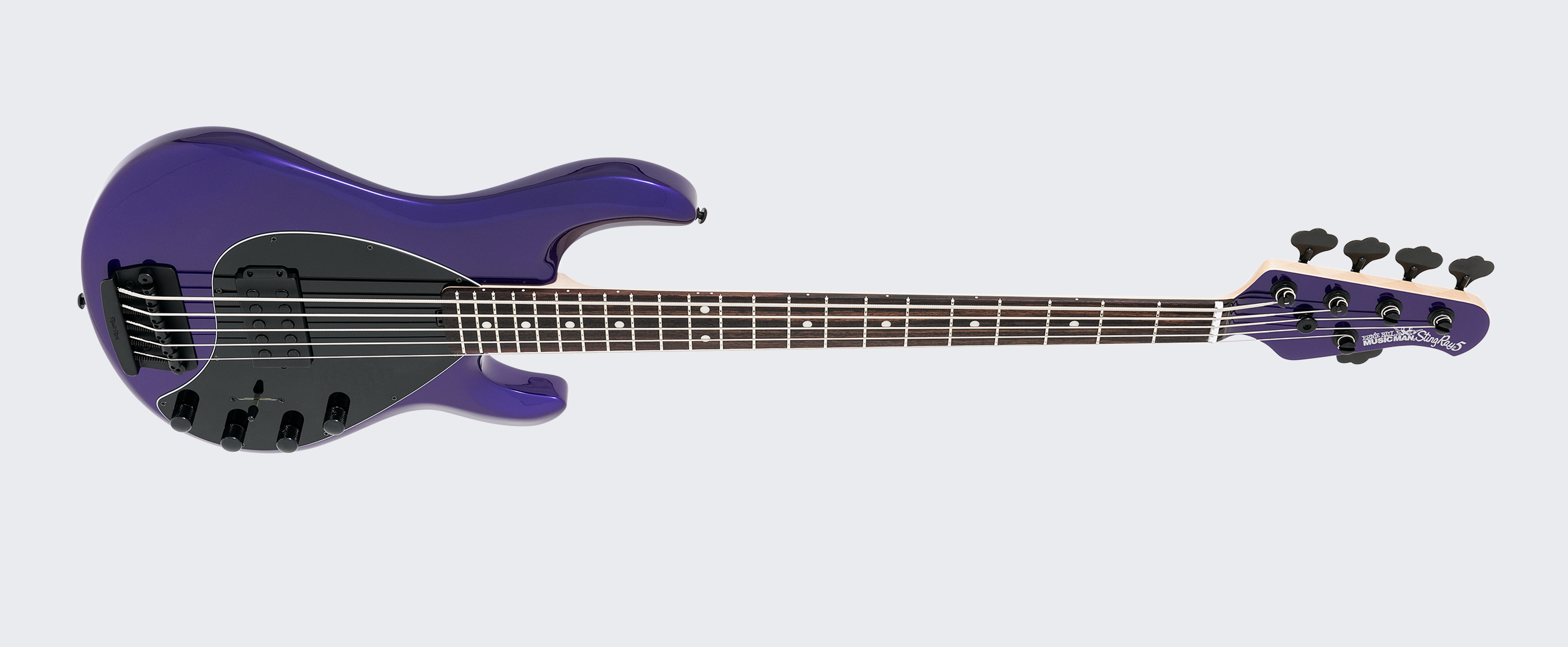

StingRay5 Slide
StingRay5 Slide
StingRay5 Slide
StingRay5 Slide
StingRay5 Slide
StingRay5 Slide
StingRay5 Slide
StingRay5 Slide
StingRay5 Slide
StingRay5 Slide
StingRay5 Highlight
Alnico Humbucking Pickups
StingRay5 Highlight
3 band EQ active preamp
StingRay5 Highlight
Compensated nut

Specifications, Schematics & More

Specifications StingRay 5
Model StingRay 5
Size 13-3/8" wide, 1-3/4" thick, 45-3/4" long (34.0 cm wide, 4.5 cm thick, 116.2 cm long)
Body Wood Ash
Body Finish High gloss polyester (Stealth Black is a matte finish)
Bridge Standard - Music Man® chrome plated, hardened steel bridge plate with stainless steel saddles (Stealth Black finish features matte black hardware)
Scale Length 34" (86.4 cm)
Neck Radius 11" (27.9 cm)

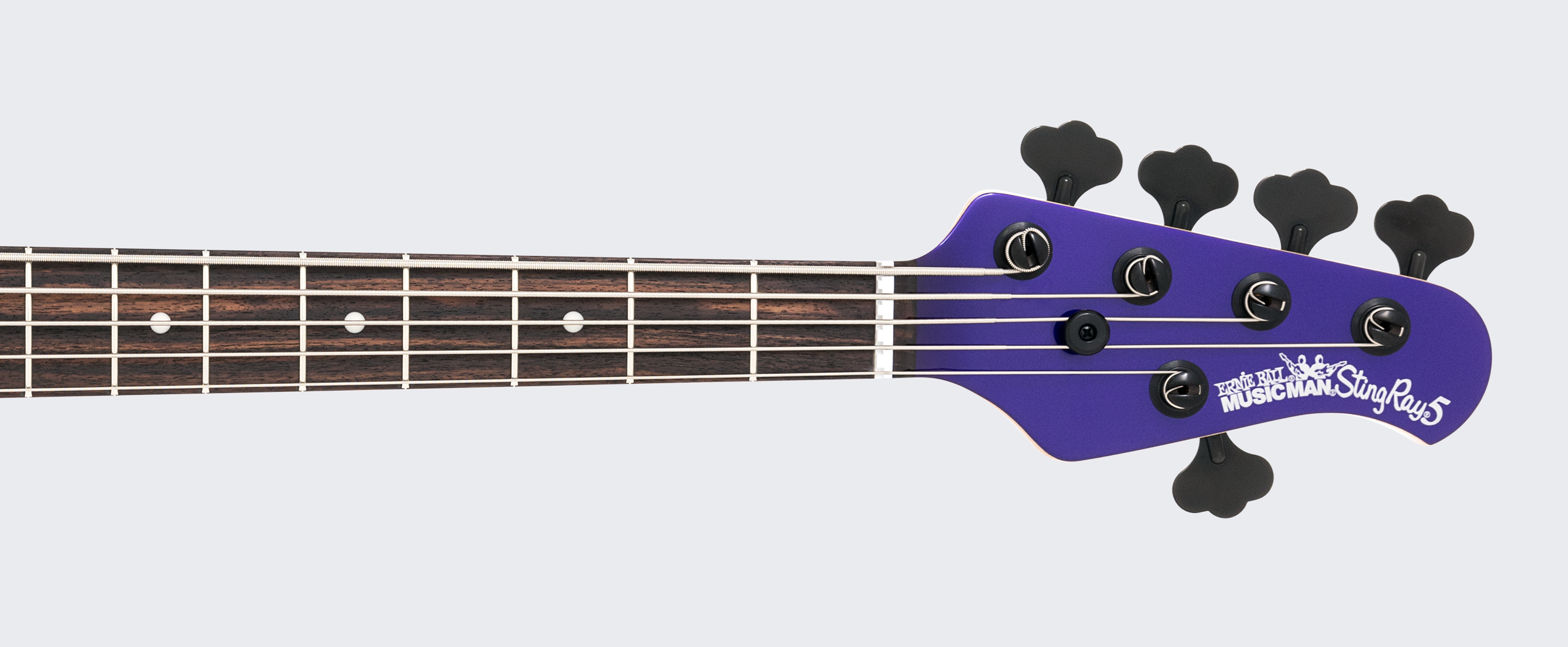

Headstock Size Only 9" (22.9 cm) long

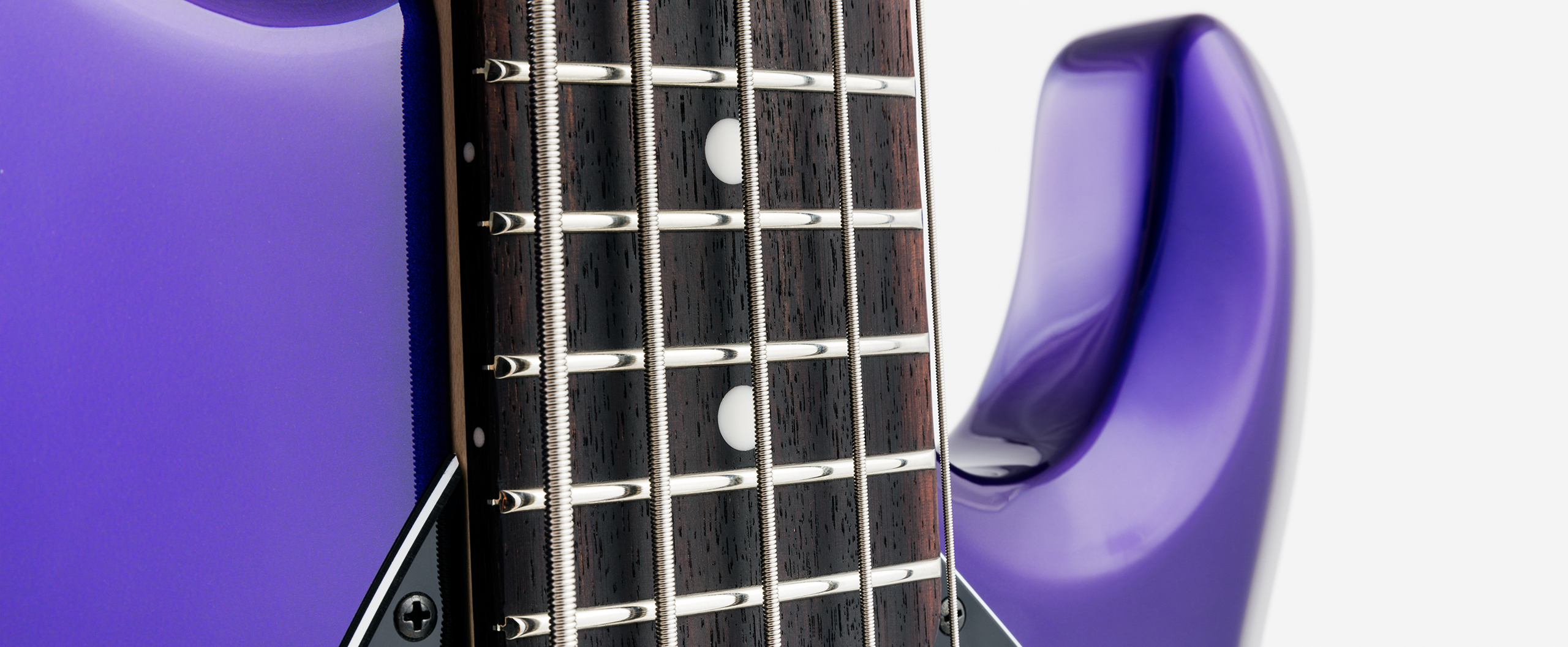

Frets 22 - High profile, wide
Neck Width 1-3/4" (44.5 mm) at nut 2-3/4"" (69.9 mm) at last fret
Neck Wood Select maple neck
Fingerboard Fretted - maple or rosewood; Fretless - Pau Ferro with or without inlaid fretlines; Stealth Black - Ebony
Neck Finish Gunstock oil and hand-rubbed special wax blend (Ultra-light satin polyurethane finish for Stealth Black)
Neck Colors Standard - Natural; Optional - Matching painted headstock

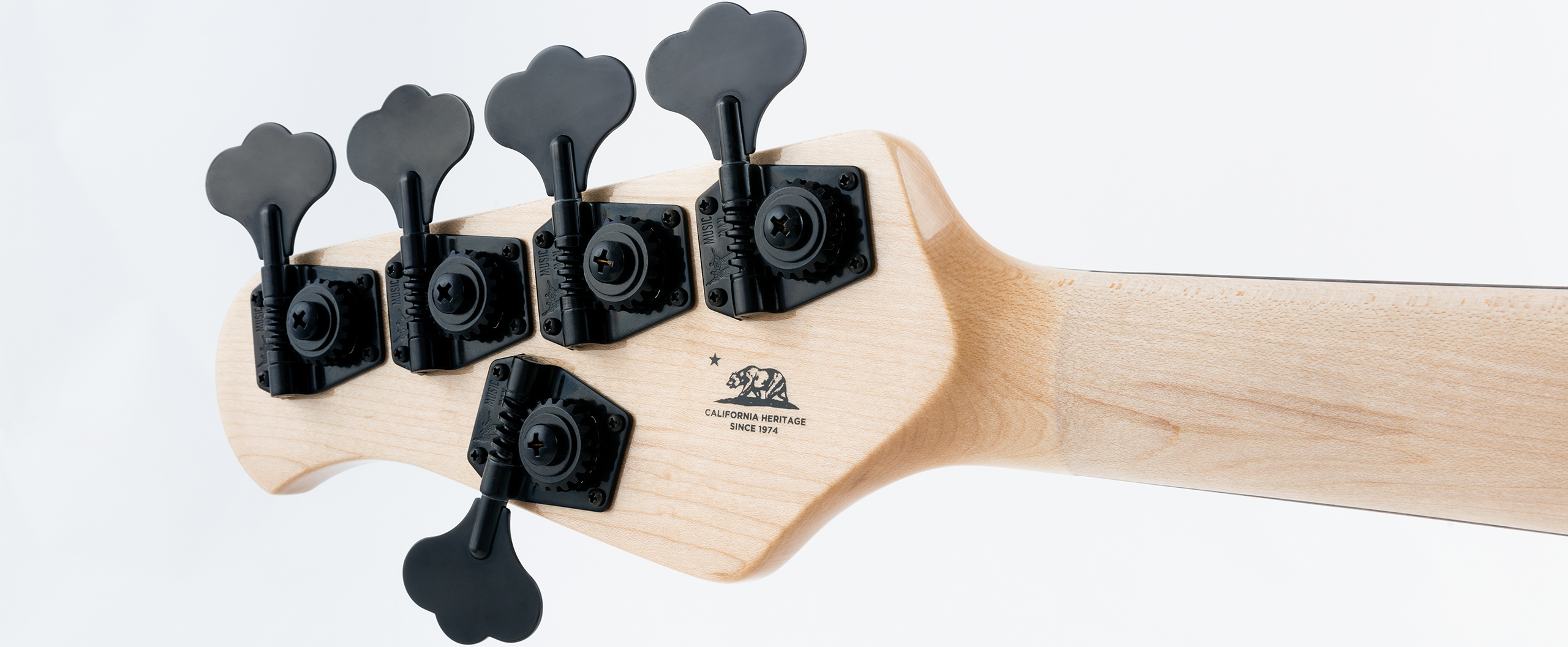

Tuning Machines Schaller BM, with tapered string posts
Truss Rod Adjustable - no component or string removal

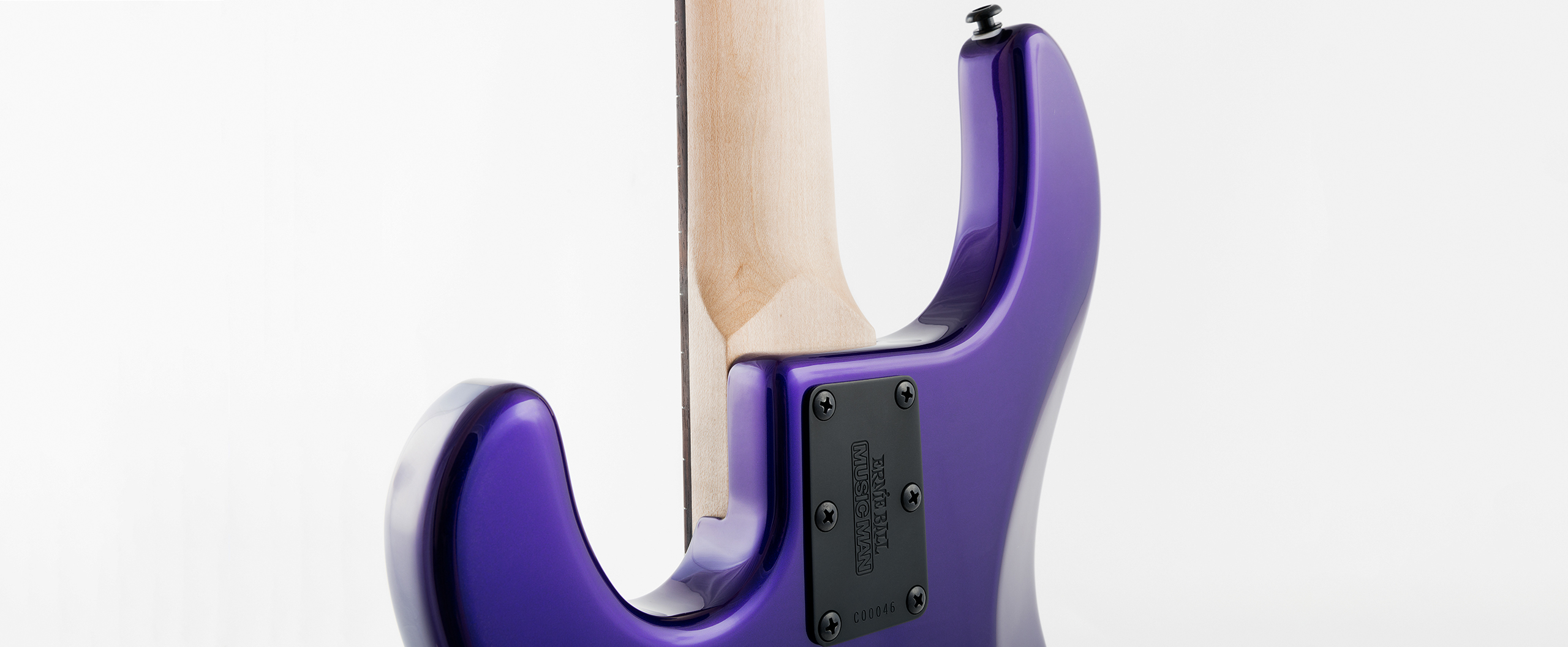

Neck Attachment 6 bolt neck plate
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined pickguard
Controls Single Pickup, 3-band active preamp; vol, treble, mid, bass; Dual Pickup, 3-band active preamp; vol, treble, mid, bass
Switching Single Pickup - 3-way lever pickup selector; Dual Pickup - 5-way lever pickup selector
Pickups Standard - Music Man® humbucking with Alnico pole pieces; Optional - Dual Humbucking with Alnico pole pieces; Optional - Humbucking/Single coil with Alnico pole pieces
Left Handed Yes
Strings 45w-65w-80w-100w-130w (Regular Slinky Bass #2836)

id => 47

iid => 47

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2015-11-06 08:20:46

updated_at => 2015-11-06 08:20:46

Specifications StingRay 5
Model StingRay 5
Order 0
Size 13-3/8" wide, 1-3/4" thick, 45-3/4" long (34.0 cm wide, 4.5 cm thick, 116.2 cm long)
Body Wood Ash
Body Finish High gloss polyester (Stealth Black is a matte finish)
Body Colors
Body Bindings
Bridge Standard - Music Man® chrome plated, hardened steel bridge plate with stainless steel saddles (Stealth Black finish features matte black hardware)
Pickguard
Scale Length 34" (86.4 cm)
Neck Radius 11" (27.9 cm)
Headstock Size Only 9" (22.9 cm) long
Frets 22 - High profile, wide
Neck Width 1-3/4" (44.5 mm) at nut 2-3/4"" (69.9 mm) at last fret
Neck Wood Select maple neck
Fingerboard Fretted - maple or rosewood; Fretless - Pau Ferro with or without inlaid fretlines; Stealth Black - Ebony
Fret Markers
Neck Finish Gunstock oil and hand-rubbed special wax blend (Ultra-light satin polyurethane finish for Stealth Black)
Neck Colors Standard - Natural; Optional - Matching painted headstock
Neck Binding
Tuning Machines Schaller BM, with tapered string posts
Truss Rod Adjustable - no component or string removal
Neck Attachment 6 bolt neck plate
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined pickguard
Controls Single Pickup, 3-band active preamp; vol, treble, mid, bass; Dual Pickup, 3-band active preamp; vol, treble, mid, bass
Switching Single Pickup - 3-way lever pickup selector; Dual Pickup - 5-way lever pickup selector
Pickups Standard - Music Man® humbucking with Alnico pole pieces; Optional - Dual Humbucking with Alnico pole pieces; Optional - Humbucking/Single coil with Alnico pole pieces
Left Handed Yes
Strings 45w-65w-80w-100w-130w (Regular Slinky Bass #2836)
