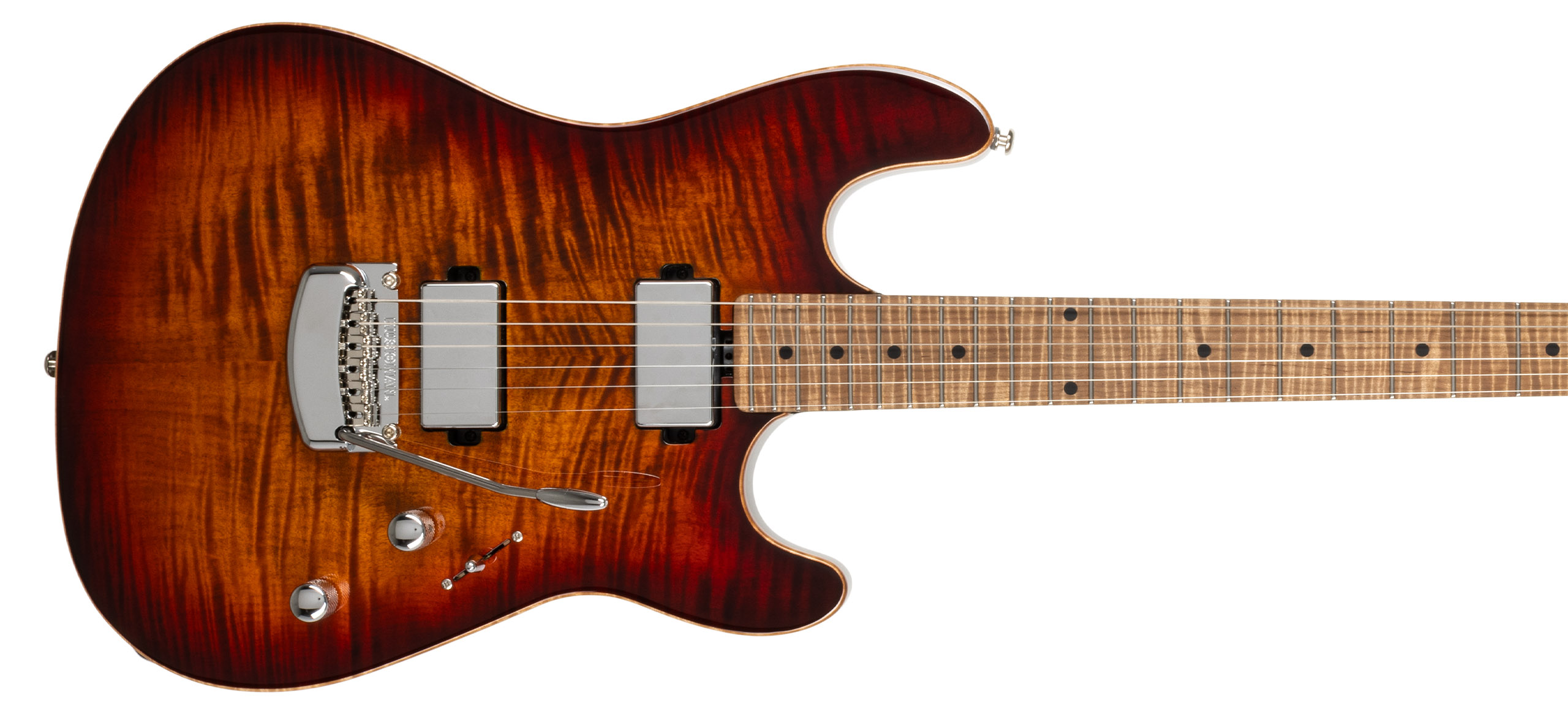

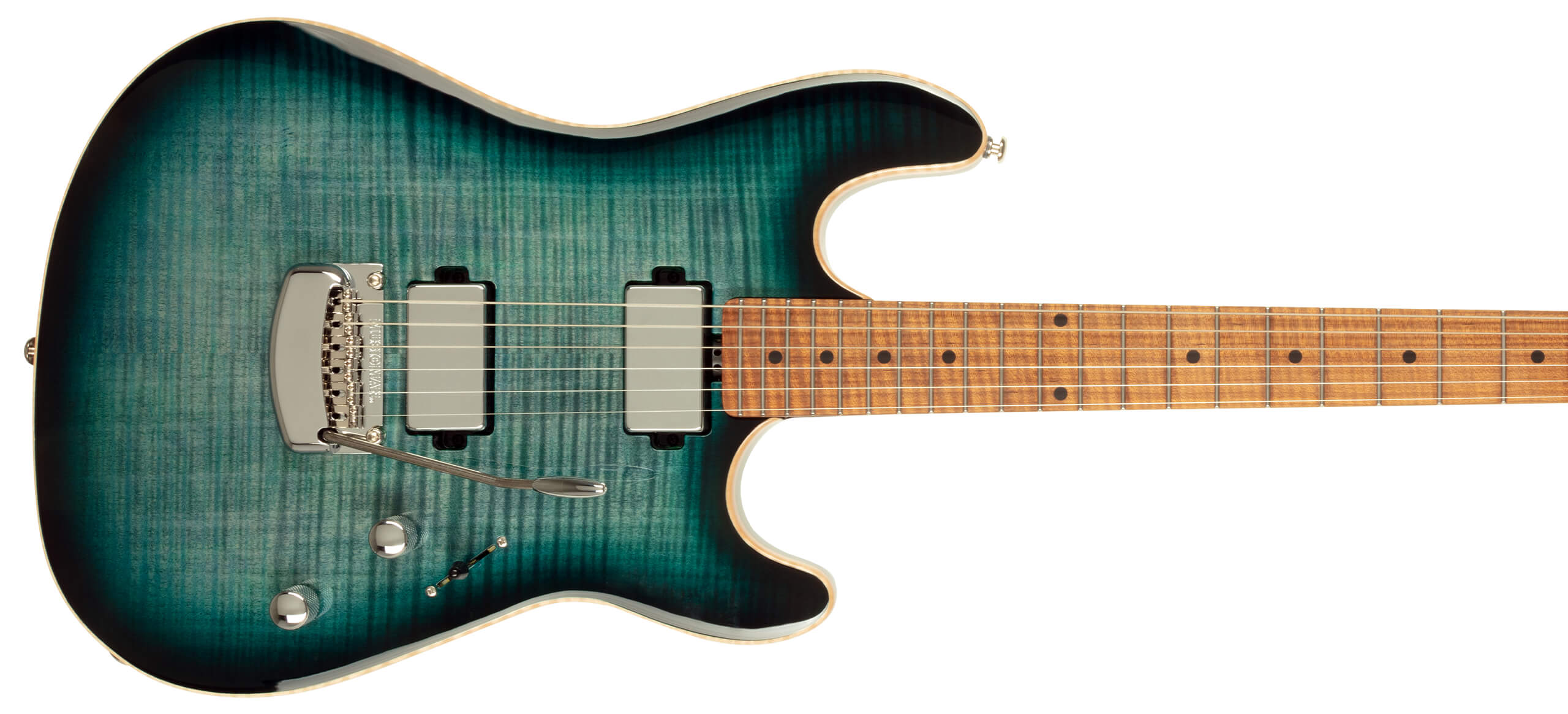

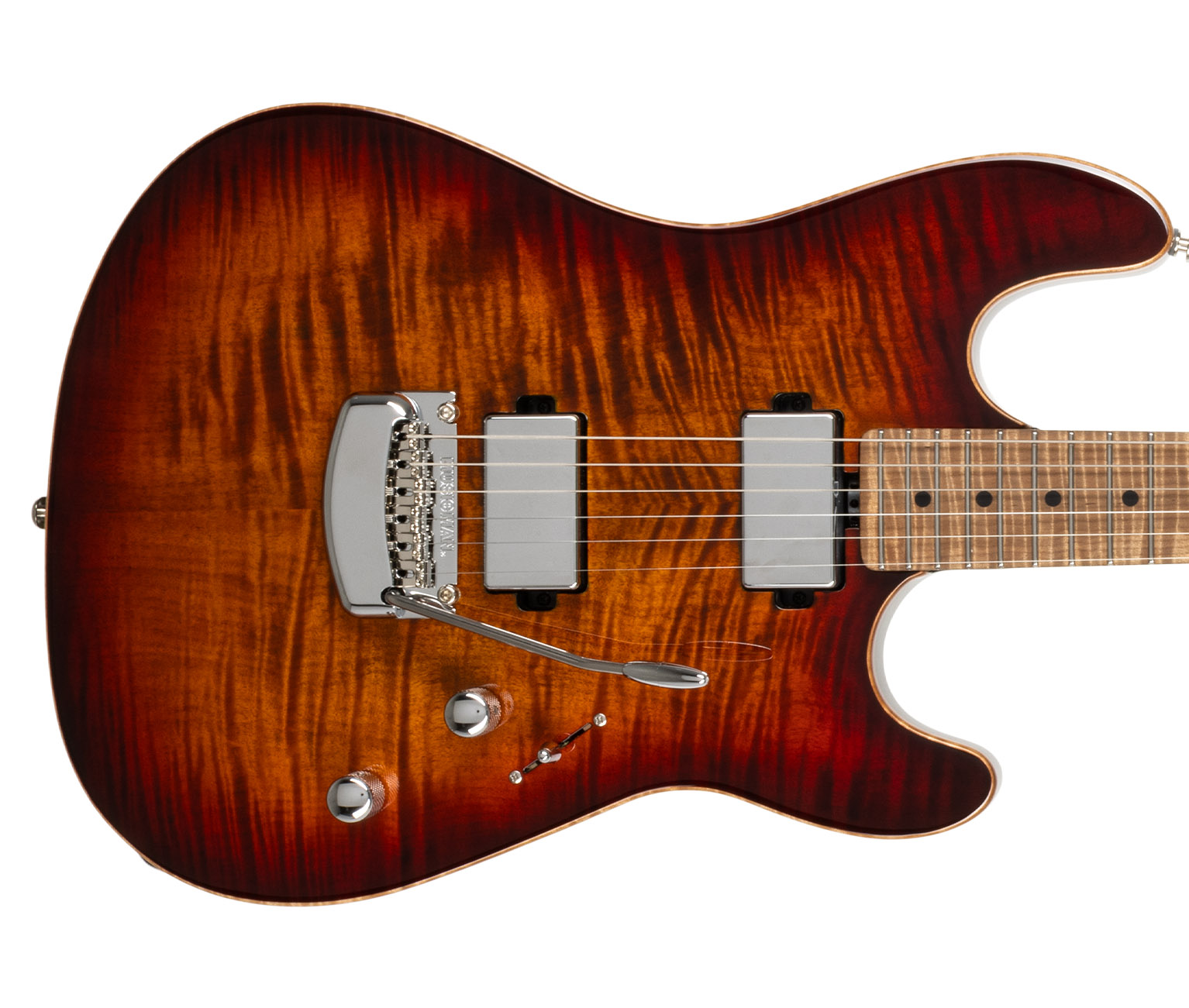

The Ernie Ball Music Man Sabre HT guitar is the newest edition to the ever-growing family of Ernie Ball Music Man instruments. Featuring the familiar shape and feel of the original Sabre, the Sabre HT showcases new custom Music Man pickup technology inspired by over a decade of guitar string research delivering an incredibly dynamic and responsive playing experience. The pickups are able to achieve an ultra-high-output, powerful low-end response while retaining a distinctively clean, clear tone and definition at lower volume levels. The HT (Heat Treated) bridge pickup utilizes patent-pending heat-treated pole pieces with a large ceramic magnet and an overwound coil that gives the pickup higher frequency harmonics and excellent touch sensitivity. The Sabre's custom-wound neck humbucker also features a large ceramic magnet and has been wound specifically to pair with the Sabre's HT bridge pickup. In addition, the electronics package includes a push-push adjustable 20dB boost function and a transparent buffered output for complete tonal consistency wherever your volume control is set. In other respects, the Sabre HT shares many of the original Sabre guitar specifications but also features a contoured Okoume body with a thick book-matched plain or roasted maple top(depending on body color), plain and roasted maple neck options, and 22 stainless steel frets.

Sabre HT Logo

OPTIONS

Yucatan Blue

Raspberry Burst

Showtime

Snowy Night

Your Custom Options:

Model:
Color:
Neck:
Pickguard:
Hardware:

Build Code
000-00-00-00

STREET PRICE

$0.00

Guitar Center

(855) 770-3373

Buy Now
Musician's Friend

(801) 501-8110

Buy Now
American Musical Supply

(800) 458-4076

Buy Now

Sabre HT Highlights

Sabre HT Slide
Sabre HT Slide
Sabre HT Slide
Sabre HT Slide
Sabre HT Slide
Sabre HT Slide
Sabre HT Highlight
The Sabre HT bridge humbucking pickup features proprietary Heat Treated pole pieces for increased output and wider frequency response
Sabre HT Highlight
The Sabre HT neck humbucker also features large ceramic magnets and has been wound specifically to compliment the Sabre's HT bridge pickup
Sabre HT Highlight
The Sabre HT is crafted with either a roasted or plain maple neck, 22 stainless steel frets and Schaller locking tuners

Inspired by over a decade of electric guitar string research

Incorporating the principles and insights that contributed to the development of Cobalt and M-Steel Slinkys resulting in a new material-based innovation for pickups

More Output and Dynamic Range

Outperforms normal spec pickups by providing extra output and excellent touch sensitivity

Stronger Low End and Extended Frequency Response

HT pickups display a more powerful bass response and expansion of higher frequency harmonics

Sabre HT Bridge pickup

The Sabre HT (Heat Treated) bridge pickup outperforms normal spec pickups with more output, dynamic range, and excellent touch sensitivity. The pickup not only achieves ultra-high output but also garners a powerful low-end response while retaining a distinctively clean, clear tone and definition at lower volume levels.

Sabre HT Neck Pickup

The custom-wound neck humbucker also features a large ceramic magnet and has been wound specifically to pair with the Sabre's HT bridge pickup.

Push Push Boost Circuit

The Sabre's HT preamp boost is activated by a push-push volume knob and is factory set to 12db. Via a trim pot inside the control cavity, the preamp can be adjusted up to 20db if needed for heavy rhythm parts or high octane soloing whenever the user chooses.

Transparent Buffered Output

No matter where your volume control is set, the transparent buffered output preserves your signal from high-frequency loss and keeps your tone bright and strong.

Specifications, Schematics & More

Specifications Sabre HT
Model Sabre HT
Size 12-7/8" wide, 1-3/4" thick, 38-1/8" long (32.7 cm wide, 4.4 cm thick, 96.8 cm long)
Body Wood Okoume with thick figured maple top
Body Finish High Gloss Polyester
Body Bindings Natural Wood
Bridge Music Man® Modern tremolo with crescent cover and vintage bent steel saddles
Scale Length 25.5"
Neck Radius 10" (25.4 cm)
Headstock Size 6-3/8" (16.2 cm) long
Frets 22 - High Profile Medium Width
Neck Width 1-11/16" (43.0 mm) at nut; 2-1/4" (56.9 mm) at last fret
Neck Wood Yucatan Blue & Raspberry - Roasted Figured Maple; Showtime / Snowy Night - Select Maple
Fingerboard Yucatan Blue & Raspberry - Roasted Figured Maple; Showtime - Rosewood; Snowy Night - Roasted Flame Maple
Fret Markers Dot
Neck Finish Yucatan Blue & Raspberry - Gunstock oil and hand-rubbed special wax blend; Showtime & Snowy Night - High Gloss Polyester
Neck Colors Yucatan Blue & Raspberry - Natural; Showtime & Snowy Night - Match body
Tuning Machines Schaller M6-IND locking
Neck Attachment 5 bolt, scuplpted neck joint
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls Volume knob with push/push switch for gain boost, tone knob, 5 way pickup selector switch.
Switching 5-way lever pickup selector; Push/push volume pot for boost
Pickups Bridge: Music Man® HT Humbucker - Nick: Music Man® Custom Wound Neck Humbucker
Strings 10p-13p-17p-26w-36w-46w (RPS 10 Slinkys #2240)

id => 106

iid => 106

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2022-08-03 11:36:08

updated_at => 2022-08-03 11:36:08

Specifications Sabre HT
Model Sabre HT
Order 0
Size 12-7/8" wide, 1-3/4" thick, 38-1/8" long (32.7 cm wide, 4.4 cm thick, 96.8 cm long)
Body Wood Okoume with thick figured maple top
Body Finish High Gloss Polyester
Body Colors
Body Bindings Natural Wood
Bridge Music Man® Modern tremolo with crescent cover and vintage bent steel saddles
Pickguard
Scale Length 25.5"
Neck Radius 10" (25.4 cm)
Headstock Size 6-3/8" (16.2 cm) long
Frets 22 - High Profile Medium Width
Neck Width 1-11/16" (43.0 mm) at nut; 2-1/4" (56.9 mm) at last fret
Neck Wood Yucatan Blue & Raspberry - Roasted Figured Maple; Showtime / Snowy Night - Select Maple
Fingerboard Yucatan Blue & Raspberry - Roasted Figured Maple; Showtime - Rosewood; Snowy Night - Roasted Flame Maple
Fret Markers Dot
Neck Finish Yucatan Blue & Raspberry - Gunstock oil and hand-rubbed special wax blend; Showtime & Snowy Night - High Gloss Polyester
Neck Colors Yucatan Blue & Raspberry - Natural; Showtime & Snowy Night - Match body
Neck Binding
Tuning Machines Schaller M6-IND locking
Truss Rod
Neck Attachment 5 bolt, scuplpted neck joint
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls Volume knob with push/push switch for gain boost, tone knob, 5 way pickup selector switch.
Switching 5-way lever pickup selector; Push/push volume pot for boost
Pickups Bridge: Music Man® HT Humbucker - Nick: Music Man® Custom Wound Neck Humbucker
Left Handed
Strings 10p-13p-17p-26w-36w-46w (RPS 10 Slinkys #2240)
