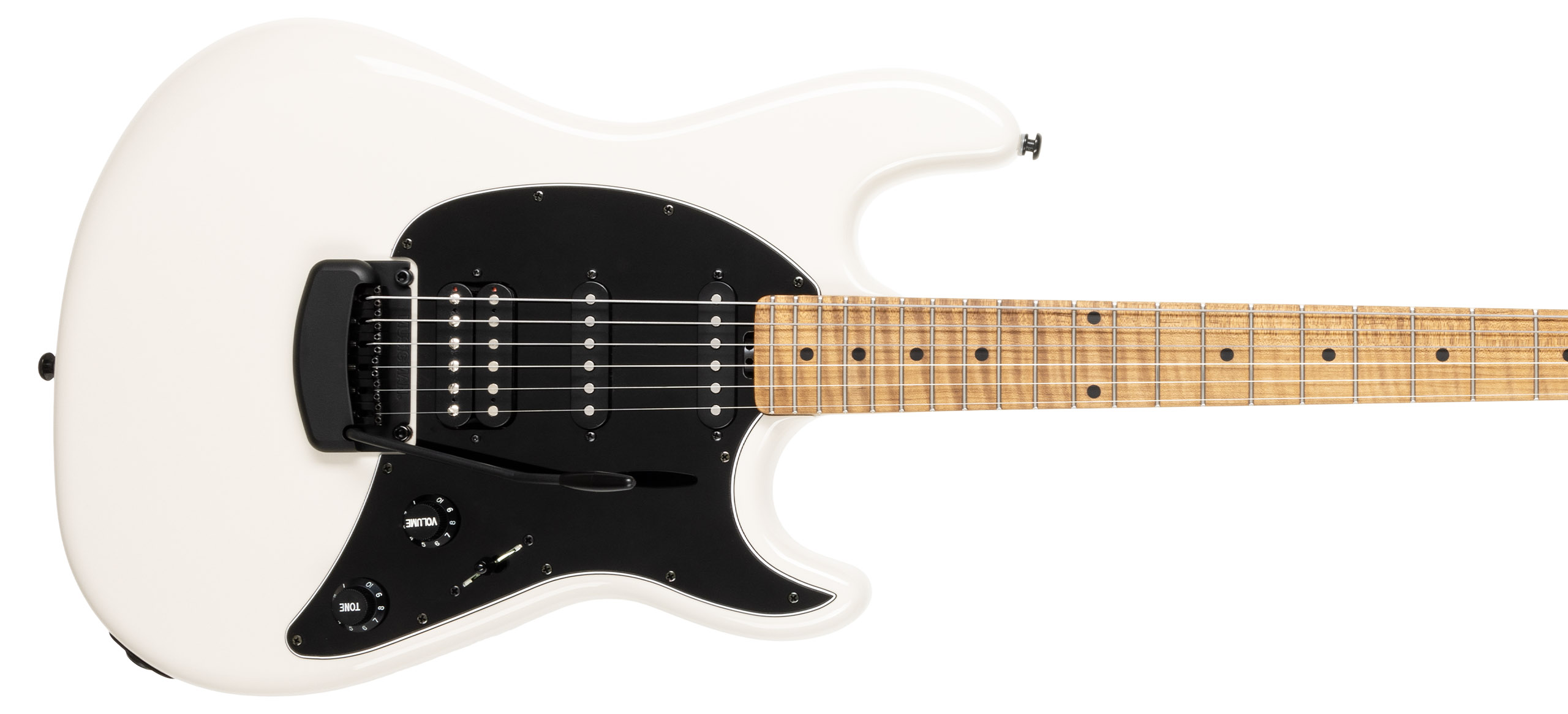

The 2018 Cutlass RS HSS features a brand new roasted figured maple neck with rosewood or maple fingerboard (fingerboard option depends on body color). The RS HSS model retains all of the familiar elements of the original Cutlass including an alder body, super smooth modern tremolo and oversized 4 over 2 headstock. The bridge pickup in the HSS is a custom wound Music Man ceramic humbucker with a vintage sound that compliments the single coils yet has plenty of crunchy rhythms and biting lead tones.

Cutlass RS HSS Logo

OPTIONS

Powder Blue

Vintage Tobacco

Your Custom Options:

Model:
Color:
Neck:
Pickguard:
Hardware:

Build Code
000-00-00-00

STREET PRICE

$0.00

Guitar Center

(855) 770-3373

Buy Now
Musician's Friend

(801) 501-8110

Buy Now
American Musical Supply

(800) 458-4076

Buy Now
Lark Guitars

(210) 384-4303

Buy Now

Cutlass RS HSS Highlights

Cutlass RS HSS Slide
Cutlass RS HSS Slide
Cutlass RS HSS Slide
Cutlass RS HSS Slide
Cutlass RS HSS Slide
Cutlass RS HSS Slide
Cutlass RS HSS Slide
Cutlass RS HSS Highlight

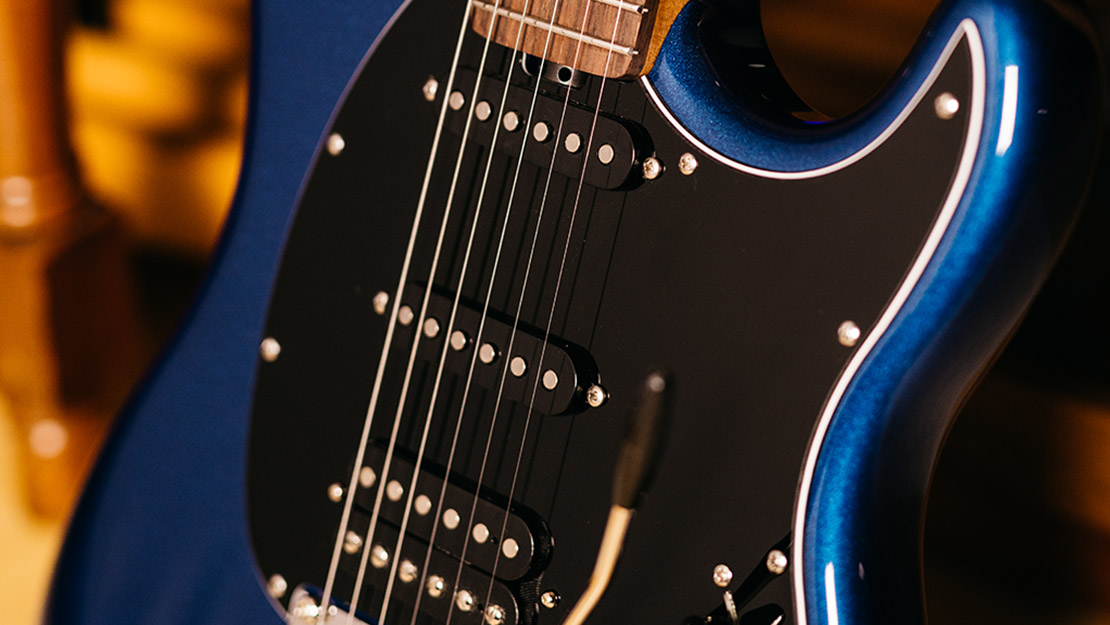

Custom Wound Music Man Ceramic Humbucker
Cutlass RS HSS Highlight

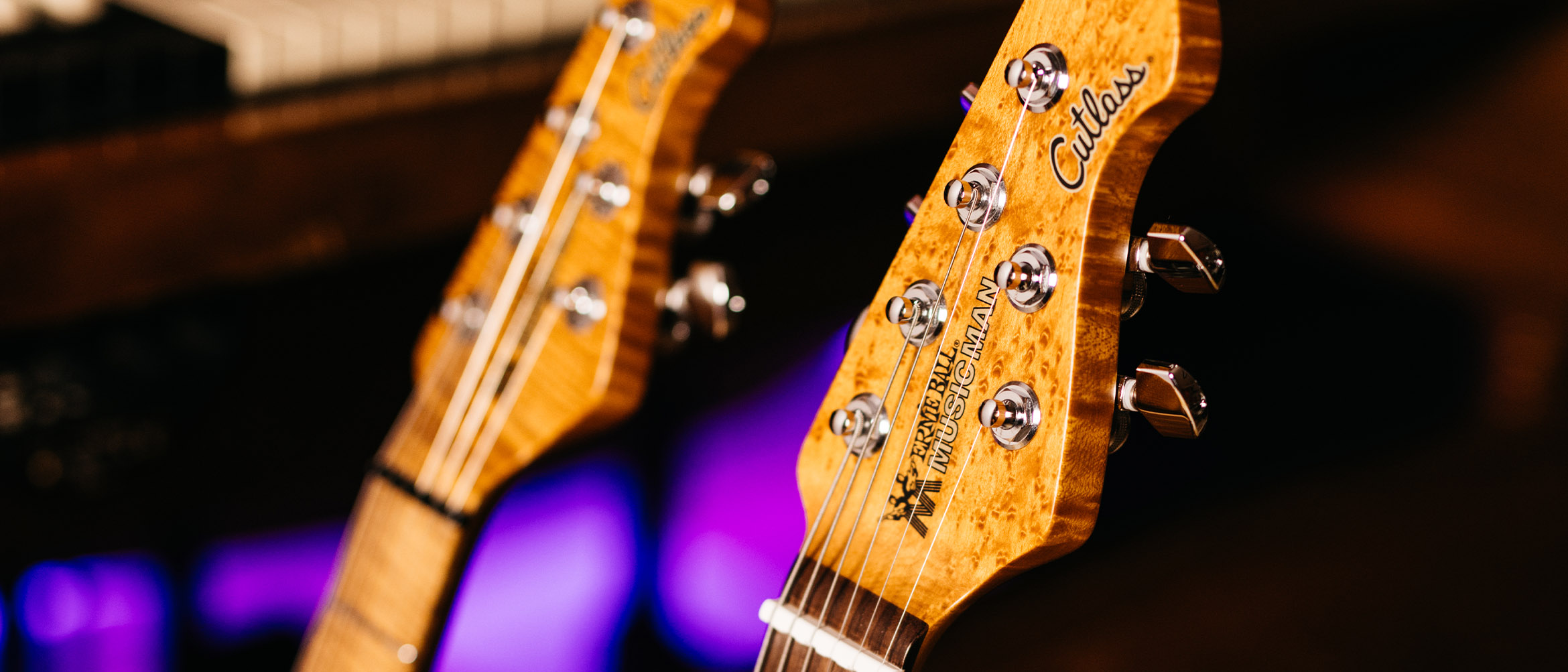

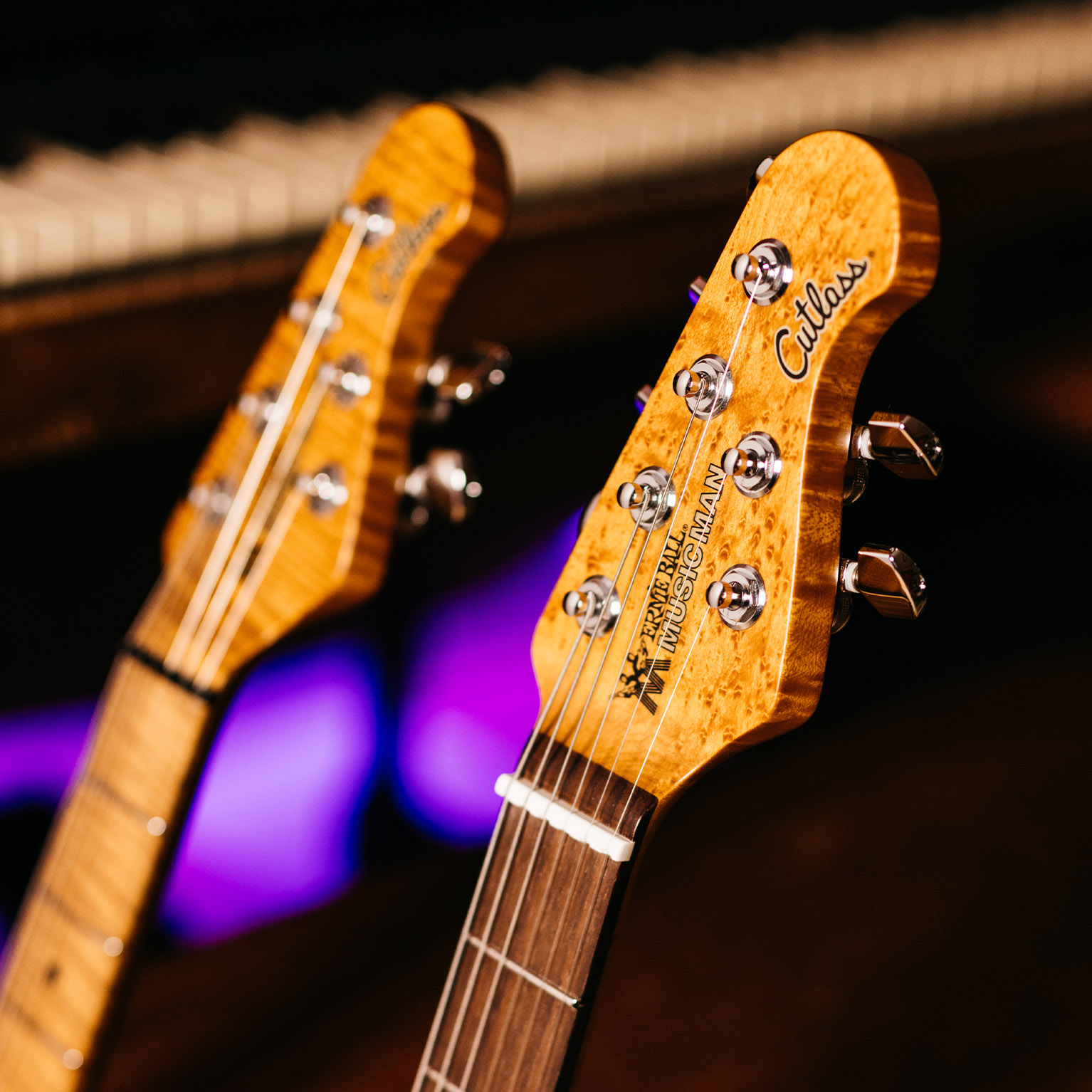

Figured Roasted Maple Neck
Cutlass RS HSS Highlight

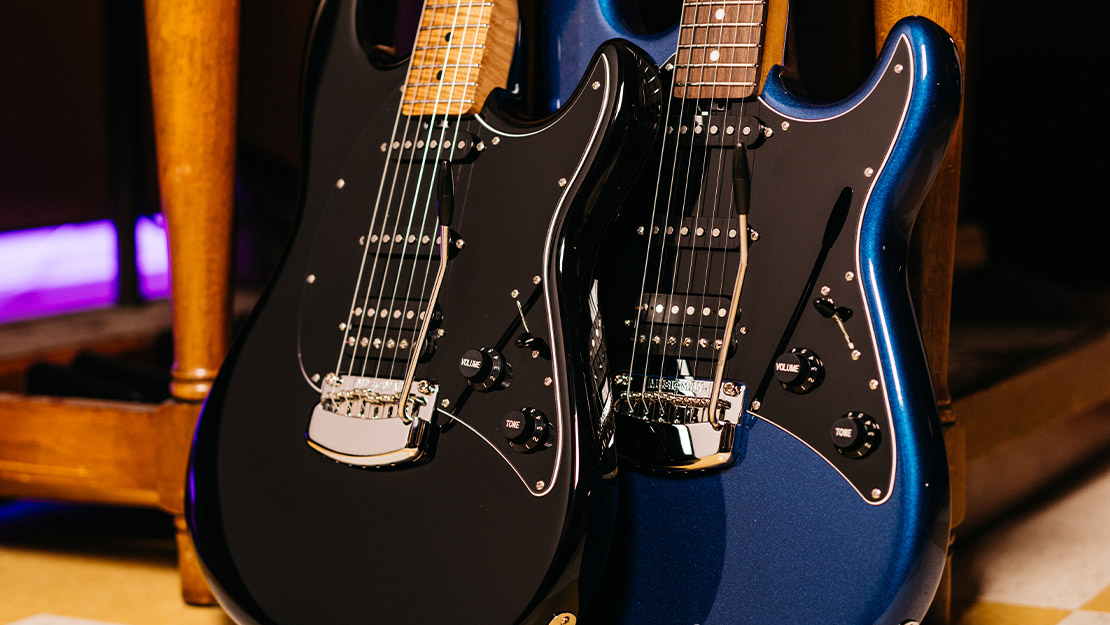

Silent Circuit with Transparent Buffered Output

Specifications, Schematics & More

Specifications Cutlass HSS RS
Model Cutlass HSS RS
Size 12-7/8" wide, 1-5/8" thick, 38-1/8" long (32.7 cm wide, 4.1 cm thick, 96.8 cm long)
Body Wood Alder
Body Finish High Gloss Polyester
Body Colors Firemist Silver, Ivory White, Vintage Sunburst, Vintage Turquoise, Charcoal Frost, Coral Red, Stealth Black
Bridge Music Man® Modern tremolo with vintage bent steel saddles
Pickguard Parchment (Firemist Silver, Vintage Turquoise, or Coral Red); Mint (Ivory White); Shell (Vintage Sunburst or Charcoal Frost); Matte Black (Stealth)
Scale Length 25-1/2" (64.8 cm)
Neck Radius 10" (25.4 cm)
Headstock Size 6-3/8" (16.2 cm) long
Frets 22 - High profile, medium width, Stainless Steel
Neck Width 1-5/8" (41.3 mm) at nut, 2-1/4" (56.9 mm) at last fret
Neck Wood Roasted figured maple neck
Fingerboard Roasted Figured Maple (Vintage Turquoise, Vintage Sunburst,); Rosewood ( Ivory White, Coral Red Red, or Charcoal Frost); Ebony (Stealth)
Fret Markers 1/4" Black or White Face dots
Neck Finish Hand rubbed oil and wax finish on all but Stealth Black, which features an ultra-light satin polyurethane finish
Tuning Machines Schaller M6-IND locking
Truss Rod Adjustable - no component or string removal

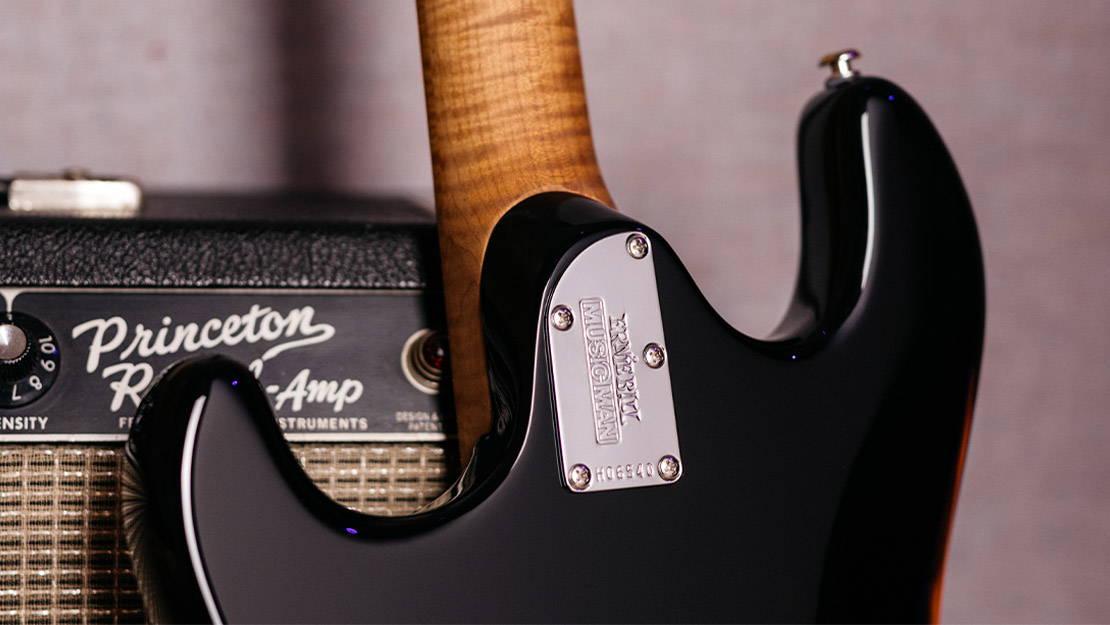

Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined pickguard
Controls Passive 500kohm volume and tone (250kohm load on lever switch positions 2,3,4, & 5) - .022µF tone capacitor; with transparent buffered output for complete tonal consistency at all volume levels
Switching 5-way lever pickup selector
Pickups HSS - 1 Music Man® custom humbucking bridge pickup, 2 Music Man® custom wound single coils featuring the new wide spectrum Music Man® "Silent Circuit", which reduces hum and retains true single coil sound
Left Handed No
Strings 9p-11p-16p-26w-36w-46w (M-Steel Hybrid Slinky #2922)

id => 70

iid => 70

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2017-05-31 14:22:17

updated_at => 2017-05-31 14:22:17

Specifications Cutlass HSS RS
Model Cutlass HSS RS
Order 0
Size 12-7/8" wide, 1-5/8" thick, 38-1/8" long (32.7 cm wide, 4.1 cm thick, 96.8 cm long)
Body Wood Alder
Body Finish High Gloss Polyester
Body Colors Firemist Silver, Ivory White, Vintage Sunburst, Vintage Turquoise, Charcoal Frost, Coral Red, Stealth Black
Body Bindings
Bridge Music Man® Modern tremolo with vintage bent steel saddles
Pickguard Parchment (Firemist Silver, Vintage Turquoise, or Coral Red); Mint (Ivory White); Shell (Vintage Sunburst or Charcoal Frost); Matte Black (Stealth)
Scale Length 25-1/2" (64.8 cm)
Neck Radius 10" (25.4 cm)
Headstock Size 6-3/8" (16.2 cm) long
Frets 22 - High profile, medium width, Stainless Steel
Neck Width 1-5/8" (41.3 mm) at nut, 2-1/4" (56.9 mm) at last fret
Neck Wood Roasted figured maple neck
Fingerboard Roasted Figured Maple (Vintage Turquoise, Vintage Sunburst,); Rosewood ( Ivory White, Coral Red Red, or Charcoal Frost); Ebony (Stealth)
Fret Markers 1/4" Black or White Face dots
Neck Finish Hand rubbed oil and wax finish on all but Stealth Black, which features an ultra-light satin polyurethane finish
Neck Colors
Neck Binding
Tuning Machines Schaller M6-IND locking
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined pickguard
Controls Passive 500kohm volume and tone (250kohm load on lever switch positions 2,3,4, & 5) - .022µF tone capacitor; with transparent buffered output for complete tonal consistency at all volume levels
Switching 5-way lever pickup selector
Pickups HSS - 1 Music Man® custom humbucking bridge pickup, 2 Music Man® custom wound single coils featuring the new wide spectrum Music Man® "Silent Circuit", which reduces hum and retains true single coil sound
Left Handed No
Strings 9p-11p-16p-26w-36w-46w (M-Steel Hybrid Slinky #2922)
