The Axis Super Sport has all the great features of the Axis guitar with a few upgraded options for ultimate versatility. Beautiful quilt or flame maple veneer over basswood with custom DiMarzio electronics are controlled by a five-way lever switch offering split coil tonal combinations unavailable on the Axis. The Axis Super Sport asymmetric hard rock maple neck allows for comfortable hand and finger positions across all 22 frets, while the Music Man vintage style tremolo and locking Schaller tuners makes string changing quick and easy keeping the guitar perfectly in tune.

Axis Super Sport Logo

CUSTOM OPTIONS

Trans Gold Flame

Natural Flame

Balboa Blue Burst Flame

Trans Gold Quilt (+$200)

Natural Quilt (+$200)

Balboa Blue Burst Quilt (+$200)

Your Custom Options:

Natural Flame
Color
No
Pickguard
Axis Super Sport Trem
Model
Rosewood fretboard
Neck

Build Code
320-F2-20-00

STREET PRICE

$2,099.00

Axis Super Sport Highlights

Axis Super Sport Slide
Axis Super Sport Slide
Axis Super Sport Slide
Axis Super Sport Slide
Axis Super Sport Slide
Axis Super Sport Slide
Axis Super Sport Highlight

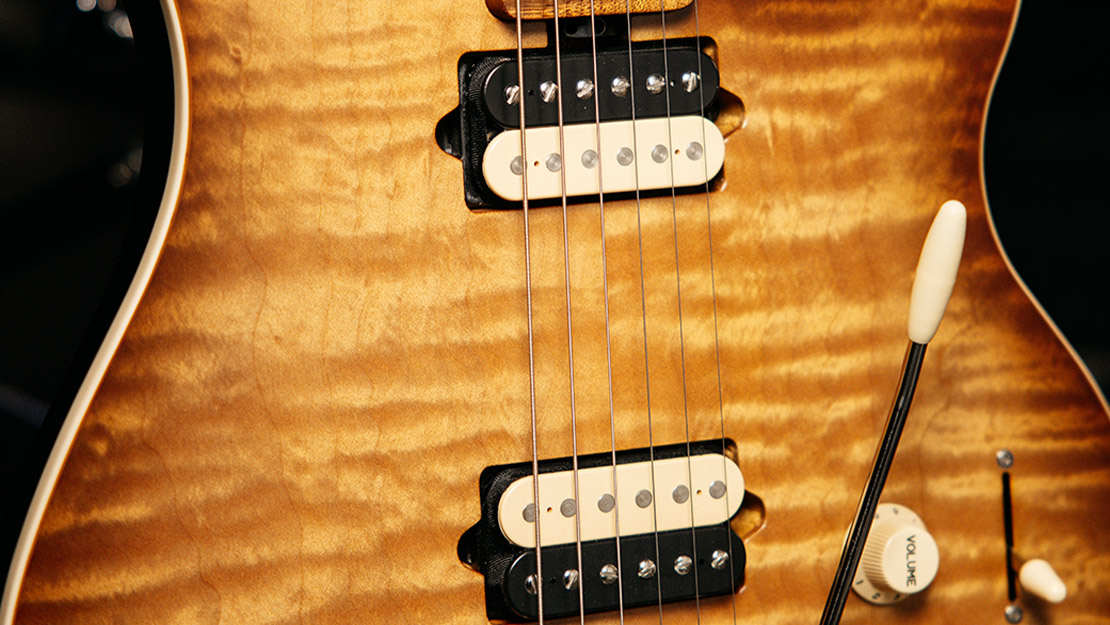

World famous custom wound DiMarzio humbuckers
Axis Super Sport Highlight
5 way switch
Axis Super Sport Highlight

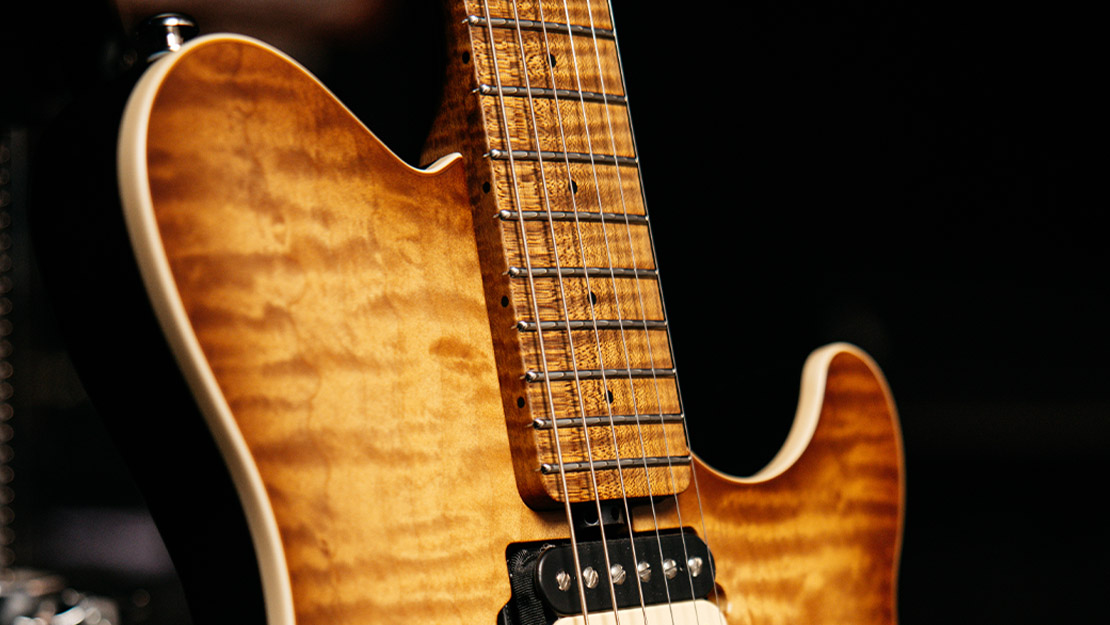

Assymetrical, figured maple neck

Specifications, Schematics & More

Specifications Axis Super Sport
Model Axis Super Sport
Size 12-5/8" wide, 1-3/4" thick, 36-1/4" long (32.1 cm wide, 4.5 cm thick, 92.0 cm long)
Weight 6 lbs, 13 oz (3.09 kg) - varies slightly; 7 oz (0.2 kg) more with tremolo
Body Wood Basswood with bookmatched figured maple top
Body Finish High gloss polyester
Body Colors Back and Sides - Opaque Black, Choice of flame or quilt top in Trans Gold, Balboa Blue Burst or Natural Gloss
Body Bindings Binding - Cream
Bridge Standard - Music Man® strings-thru-the-body bridge of chrome plated, hardened steel with solid steel saddles; Optional - Music Man® vintage tremolo
Scale Length 25-1/2" (64.8 cm)
Neck Radius 10" (25.4 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 22 - High profile, medium width
Neck Width 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret
Neck Wood Select maple neck
Fingerboard Select maple or rosewood
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Standard - Natural; Optional - Matching painted headstock

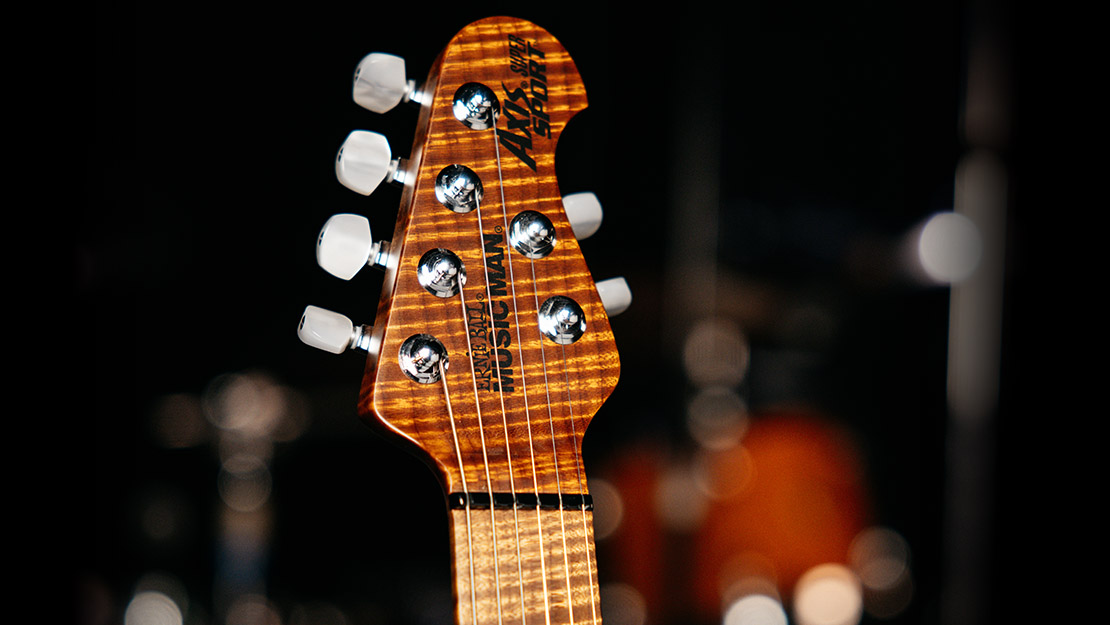

Tuning Machines Schaller M6-IND locking with pearl buttons
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - perfect alignment with no shifting; Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined control cover
Controls 500kohm volume and tone - .022µF tone capacitor
Switching 5-way lever pickup selector
Pickups HH - 2 DiMarzio custom humbucking
Left Handed Yes
Strings 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)

id => 5

iid => 5

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2015-11-06 08:20:33

updated_at => 2015-11-06 08:20:33

Specifications Axis Super Sport
Model Axis Super Sport
Order 0
Size 12-5/8" wide, 1-3/4" thick, 36-1/4" long (32.1 cm wide, 4.5 cm thick, 92.0 cm long)
Weight 6 lbs, 13 oz (3.09 kg) - varies slightly; 7 oz (0.2 kg) more with tremolo
Body Wood Basswood with bookmatched figured maple top
Body Finish High gloss polyester
Body Colors Back and Sides - Opaque Black, Choice of flame or quilt top in Trans Gold, Balboa Blue Burst or Natural Gloss
Body Bindings Binding - Cream
Bridge Standard - Music Man® strings-thru-the-body bridge of chrome plated, hardened steel with solid steel saddles; Optional - Music Man® vintage tremolo
Pickguard
Scale Length 25-1/2" (64.8 cm)
Neck Radius 10" (25.4 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 22 - High profile, medium width
Neck Width 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret
Neck Wood Select maple neck
Fingerboard Select maple or rosewood
Fret Markers
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Standard - Natural; Optional - Matching painted headstock
Neck Binding
Tuning Machines Schaller M6-IND locking with pearl buttons
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - perfect alignment with no shifting; Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined control cover
Controls 500kohm volume and tone - .022µF tone capacitor
Switching 5-way lever pickup selector
Pickups HH - 2 DiMarzio custom humbucking
Left Handed Yes
Strings 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)
