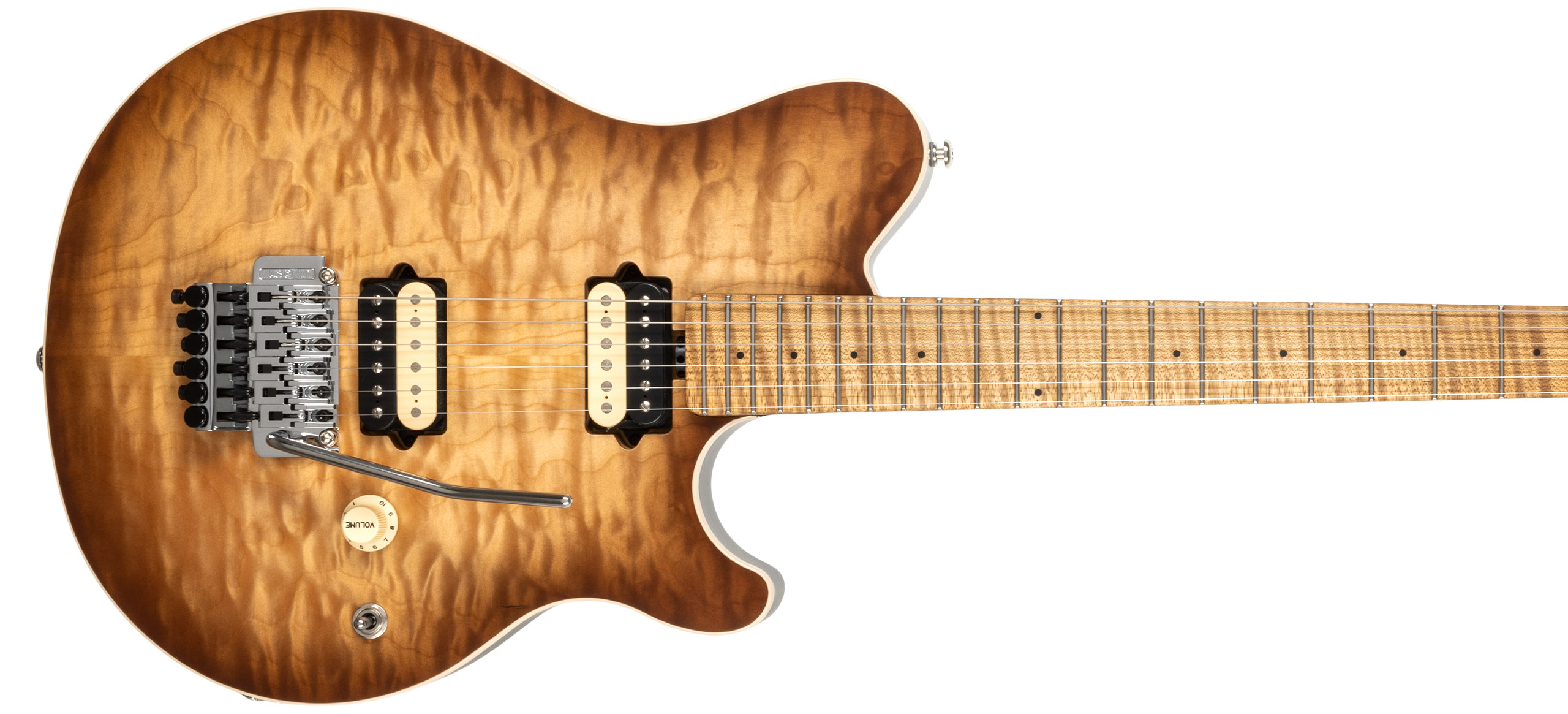

The Axis guitar features a beautiful quilt or flame maple veneer over a lightweight basswood body. Two medium output custom DiMarzio humbuckers are mounted directly to the body for optimum resonance and signal response. This tonewood / pickup combination is a perfect recipe for hard edge rock tones, but also delivers a subtle dynamic response at lower volume levels when needed. The Axis asymmetric hard rock maple neck allows for comfortable hand positions across all 22 frets, while the double locking Music Man Floyd Rose tremolo keeps the guitar perfectly in tune.

Axis Logo

CUSTOM OPTIONS

Trans Gold Flame

Natural Flame

Balboa Blue Burst Flame

Trans Gold Quilt (+$200)

Natural Quilt (+$200)

Balboa Blue Burst Quilt (+$200)

Your Custom Options:

Trans Gold Quilt
Color
No
Pickguard
Axis
Model
Matching Headstock, Maple
Neck

Build Code
300-Q1-11-00

STREET PRICE

$2,499.00

Axis Highlights

Axis Slide
Axis Slide
Axis Slide
Axis Slide
Axis Slide
Axis Slide
Axis Highlight
World famous custom wound DiMarzio humbuckers
Axis Highlight

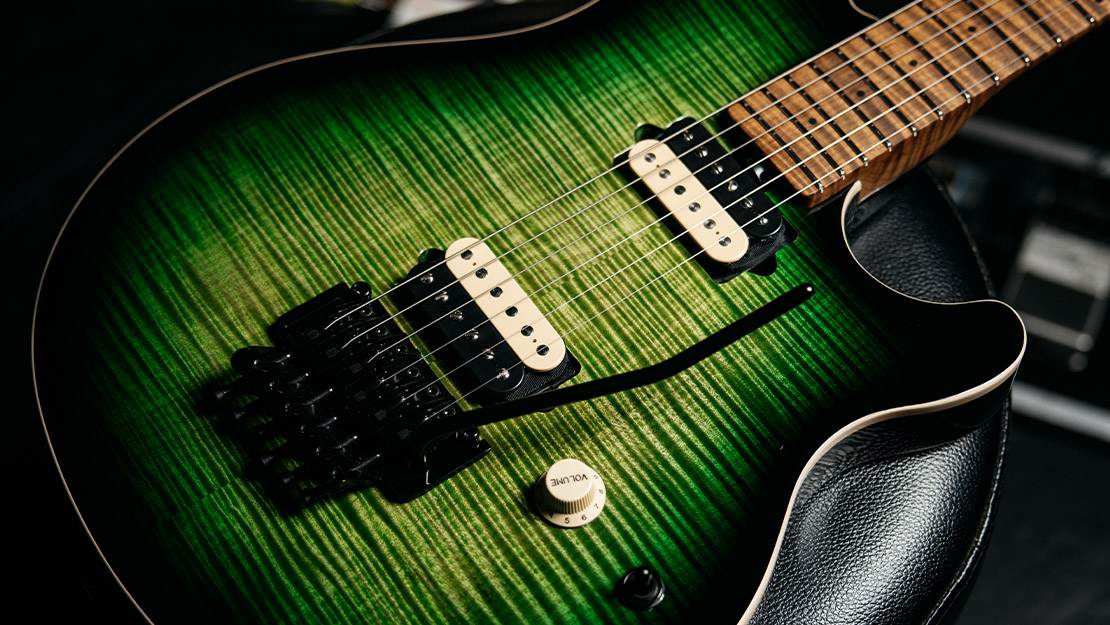

Double locking Music Man tremolo
Axis Highlight

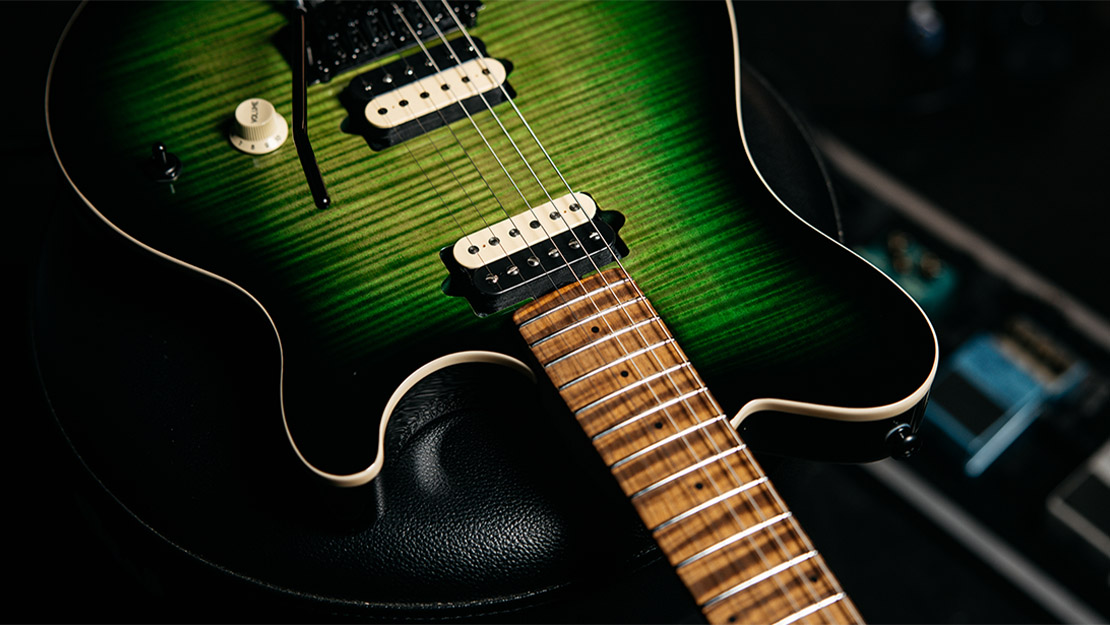

Assymetrical, figured maple neck

Watch Sweetwater Sound's Axis Guitar Demo

Billy Imperial from Ernie Ball Music Man demonstrates the Axis electric guitar for Sweetwater Sound.

Watch Kevy Nova's Axis Review

Guitarist Kevy Nova reviews and demos the Ernie Ball Music Man Axis guitar.

MAKING A
MUSIC MAN

From concepts to final set-up,
learn how we craft your instrument

CONCEPT

What can the guitar be? Every new Ernie Ball Music Man concept represents our quest to answer to this question, guided by our design team's pursuit of perfection and molded by the demands for performance from our artists. Starting from the ground up is never easy, but we believe innovation means never being satisfied with the status quo.

Design

Every Ernie Ball Music Man guitar has been meticulously designed and crafted with the utmost attention to every detail. With each new model, our world-class team of designers and engineers delivers the best playing experience possible.

Millwork

Our wood mill employs the perfect balance of machine-driven precision and the personal touch of an experienced handcraftsmen. High-quality wood is sculpted into beautiful instruments.

Big Bird

Big Bird is a recently-added member of the Ernie Ball Music Man robot family, feeding the wood raw materials into the computer-controlled cutting and drilling machine with automated precision.

Fretting

All frets are hand-applied to exact specifications, ensuring each guitar or bass has the playability you'd expect from Ernie Ball Music Man.

Sanding

Ernie Ball Music Man necks and bodies are hand-sanded multiple times, creating flawless finishes and maximum playability.

Paint

Three layers of high-gloss polyurethane are applied to each color-coated instrument body, producing a luxurious state-of-the-art finish.

Buffing/Ursula

We use state-of-the-art technology like Ursula, our beloved buffing robot. Automation ensures a high-quality and cost-effective product, every time.

Electronics

Each instrument is hand-soldered using the latest technology in our San Luis Obispo factory.

Setup

When you purchase an Ernie Ball Music Man guitar or bass, it has already been personally tested and tuned by one of our experienced setup technicians, ensuring you can play right out of the box.

Specifications, Schematics & More

Specifications Axis
Model Axis
Size 12-5/8" wide, 1-3/4" thick, 36-1/4" long (32.1 cm wide, 4.5 cm thick, 92.0 cm long)
Weight 7 lbs, 4 oz (3.29 kg) - varies slightly
Body Wood Basswood with bookmatched figured maple top
Body Finish High gloss polyester
Body Colors Back and Sides - Opaque Black; Choice of flame or quilt top in Trans Gold, Balboa Blue Burst or Natural Gloss
Body Bindings Binding - Cream
Bridge Music Man® double locking tremolo with fine tuners; lowers pitch only
Scale Length 25-1/2" (64.8 cm)
Neck Radius 10" (25.4 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 22 - High profile, medium width
Neck Width 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret
Neck Wood Select maple neck
Fingerboard Select maple
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Standard - Natural; Optional - Matching painted headstock
Tuning Machines Schaller M6LA with pearl buttons
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - perfect alignment with no shifting; Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined control cover
Controls 500kohm volume pot
Switching 3-way toggle pickup selector
Pickups HH - 2 DiMarzio custom humbucking
Left Handed No
Strings 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)

id => 3

iid => 3

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2015-11-06 08:20:32

updated_at => 2015-11-06 08:20:32

Specifications Axis
Model Axis
Order 0
Size 12-5/8" wide, 1-3/4" thick, 36-1/4" long (32.1 cm wide, 4.5 cm thick, 92.0 cm long)
Weight 7 lbs, 4 oz (3.29 kg) - varies slightly
Body Wood Basswood with bookmatched figured maple top
Body Finish High gloss polyester
Body Colors Back and Sides - Opaque Black; Choice of flame or quilt top in Trans Gold, Balboa Blue Burst or Natural Gloss
Body Bindings Binding - Cream
Bridge Music Man® double locking tremolo with fine tuners; lowers pitch only
Pickguard
Scale Length 25-1/2" (64.8 cm)
Neck Radius 10" (25.4 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 22 - High profile, medium width
Neck Width 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret
Neck Wood Select maple neck
Fingerboard Select maple
Fret Markers
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors Standard - Natural; Optional - Matching painted headstock
Neck Binding
Tuning Machines Schaller M6LA with pearl buttons
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - perfect alignment with no shifting; Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum lined control cover
Controls 500kohm volume pot
Switching 3-way toggle pickup selector
Pickups HH - 2 DiMarzio custom humbucking
Left Handed No
Strings 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)
